Empowers small vehicles to do big tasks

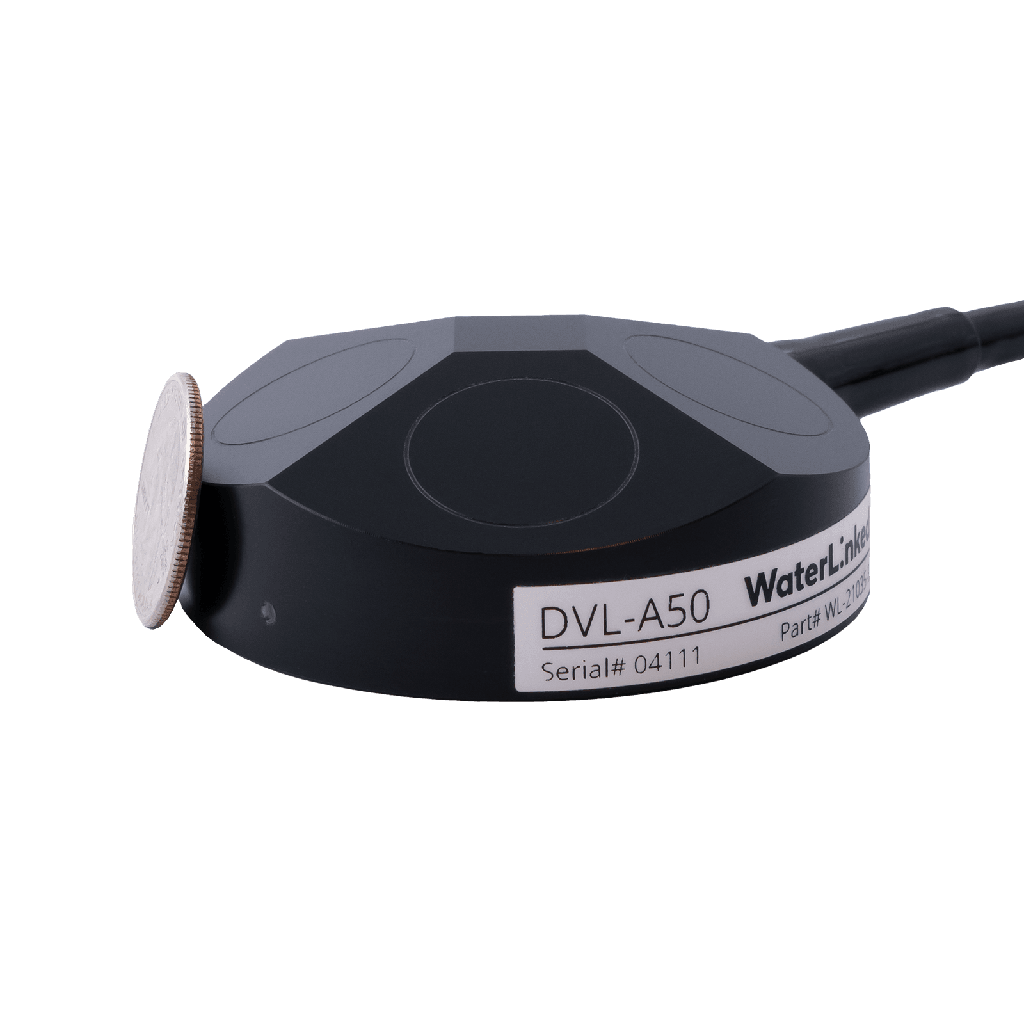

The smallest DVL in the world
The smallest DVL in the world
Work while close to the seabed
World's shortest blanking distance of 5 cm
World's shortest blanking distance of 5 cm
Unbeatable price/performance
From less than $8,000 US
Features
5cm-50m altitude range
Ethernet and Serial interface
Embedded computer for standalone operation
AHRS sensor assist for increased accuracy

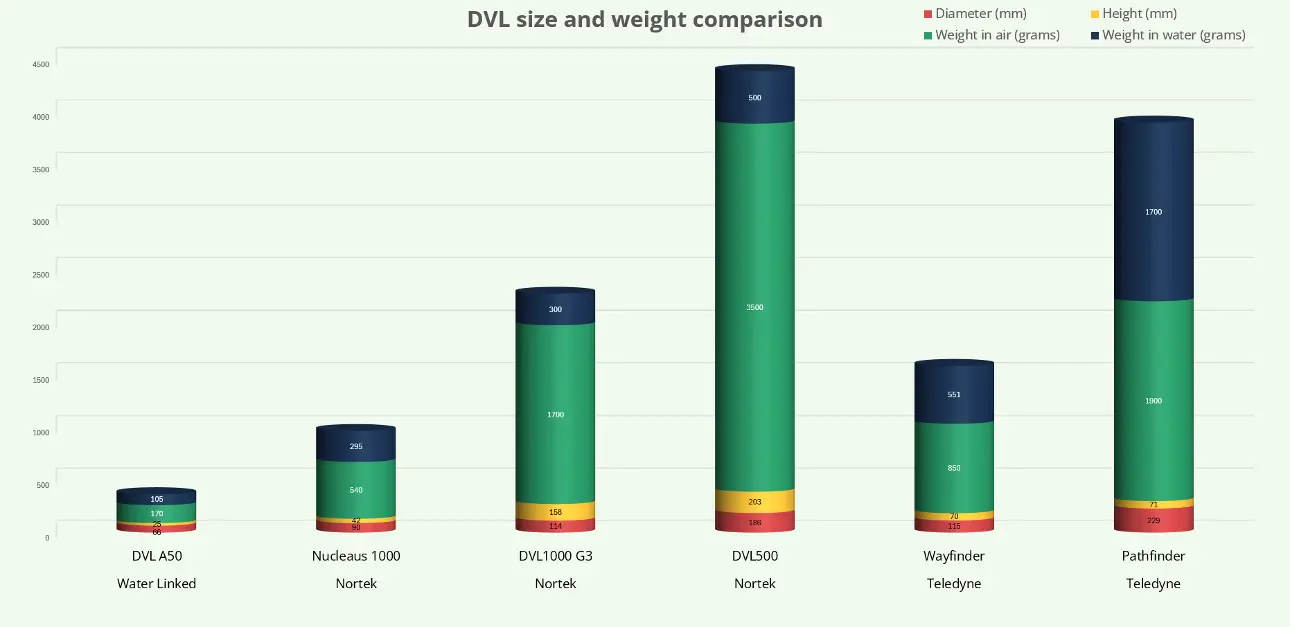

Extremely small size, enabling easy mounting and integration
Web GUI with comprehensive diagnostic features
Technical specifications
Mechanical
- Device diameter 66 mm
- Device height 25 mm
- Device weight (air) 170 grams
- Device weight (submerged) 105 grams
- Depth rating 300 or 600 meters
-
Materials
PEEK (housing)
Stainless steel 316 (back plate) - Operating temperature -5 to 60 °C
Electrical / Interface
- Input voltage 10-30 V
- Power consumption 4 W (average)
- Power-on current surge 35 W (maximum)
-
Physical interface
8 wires (pwr/serial/Ethernet)
3 meter cable (PUR 6.7 mm diameter)
with interface module - Indicator Status LED (Power, Lock)
-
Communication
UART 115200 baud serial 3,3V
Ethernet -
Protocols
Water Linked API and PD6 URL
Acoustic / Performance
- Transducer frequency 1 MHz
- Transducer setup 4-beam convex Janus array
- Transducer beam angle Transducer beam angle
- Ping rate 4-15 Hz (adaptive to altitude)
- Sensor assist Integrated AHRS/IMU (Yost Labs TSS-NANO)
- Min altitude 5 cm
-
Max altitude
50 meters
(Altitude > 35 meter is dependent
on seabed conditions, salinity levels etc.) - Max velocity 3.75 m/s
- Velocity resolution 0.1 mm/s
-
Long term accuracy
±1.01 % (Standard version)
±0.1 % (Performance version)
Approvals
- CE
- RoHS compliant
