Underwater GPS G2 BlueROV2 Kit
The Underwater GPS G2 is one of the most robust acoustic positioning systems on the market today. It's a short baseline system that enables ROV and AUV operators to achieve accurate positioning in even the most challenging environments, such as shallow water, inside tanks or pools, or around installations.
With a huge number of customers all over the world in a wide range of applications, the system is very well proven and ready for mission critical assignments.
The UGPS G2 BlueROV kit is made for custom integration with a BlueROV2 ROV.
Contents in this kit
Remain on course in murky, turbid environments
Reduce risk of vehicle damage
Follow your vehicles with absolute positioning
BlueROV2 integration kit included
Reliable positioning in challenging conditions
Custom BlueROV 2 integration
Miniature locators
100m and 300m range versions available
Water Linked API for custom integration
Web-based GUI
Technical specifications
Mechanical
-
IP rating
IP67 (Topside)
-
Depth rating
300 m (A1 Locator)
-
Operating temperature
–10°C to 60°C
- Kit weight ~ 4-6 kg
-

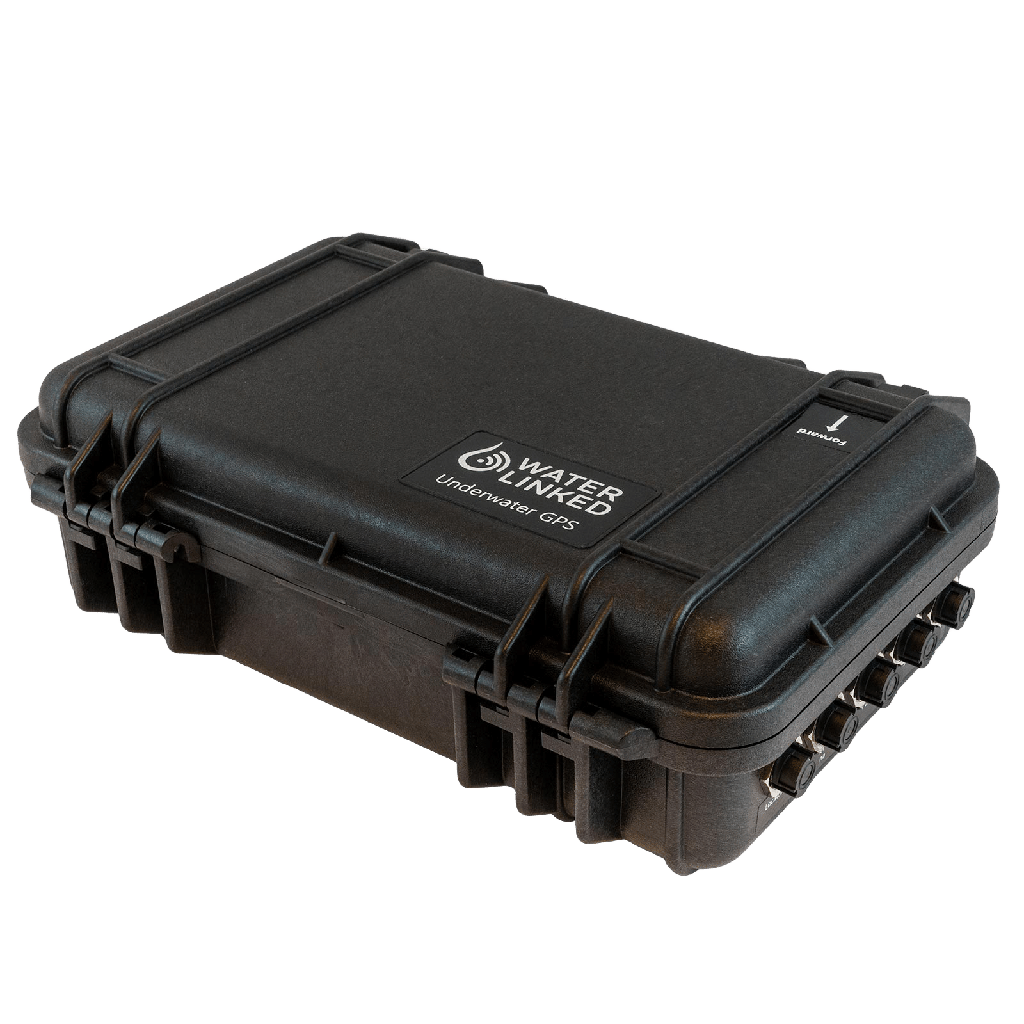

Topside external dimensions
29.6 x 21.2 x 9.6 cm
Electrical / Interface
Acoustic / Performance
-
Range
100 or 300 meter radius (depending on version selected)
-
Ping rate
2-4 Hz
- Accuracy Horizontal range : < 0.2%
- Horizontal angle : < 1°
- Vertical (depth) : < 1%
-
Long term drift Locator A1: None
Locator U1: ~1 meter per 6 hours -
Transducer frequency
31.25 kHz to 250 kHz (200 kHz typical)
-
Transducer directivity
Omnidirectional, 360 degrees
-
Operating principle
Time of flight, Triangulation
- Integrated IMUs Yost Labs TSS-NANO URL
- TDK Invensense ICM-20948
-
Integrated GPS
u-blox NEO-M8T
Approvals
-
CE certificate
Yes - RoHS compliant Yes
Learn how to setup and configure the Water Linked UGPS G2 with Blue Robotics BlueROV2.
Installation parts needed prior to setting up: https://docs.waterlinked.com/underwater-gps/integration/bluerov-integration/
Follow the industry trend
As underwater vehicles become smaller and more accessible, the demand for affordable, lightweight sensors is skyrocketing. Stay ahead of the curve and make sure that you meet your customers' needs.
Integrating the UGPS with our mapping system allows us to dynamically transfer the mapping data onto the photogrammetry models. This way we can also much more accurately navigate the diver around these fragile pieces of history, from above the surface.
- Pawel Paniczko, founder Archcom, archaeological and commercial services
