See clearly in waters with zero visibility
Advanced 3D multibeam imaging
Advanced 3D multibeam imaging

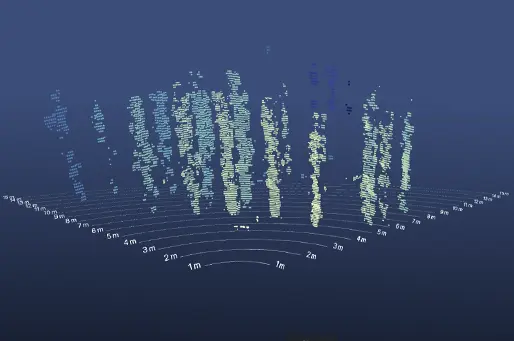

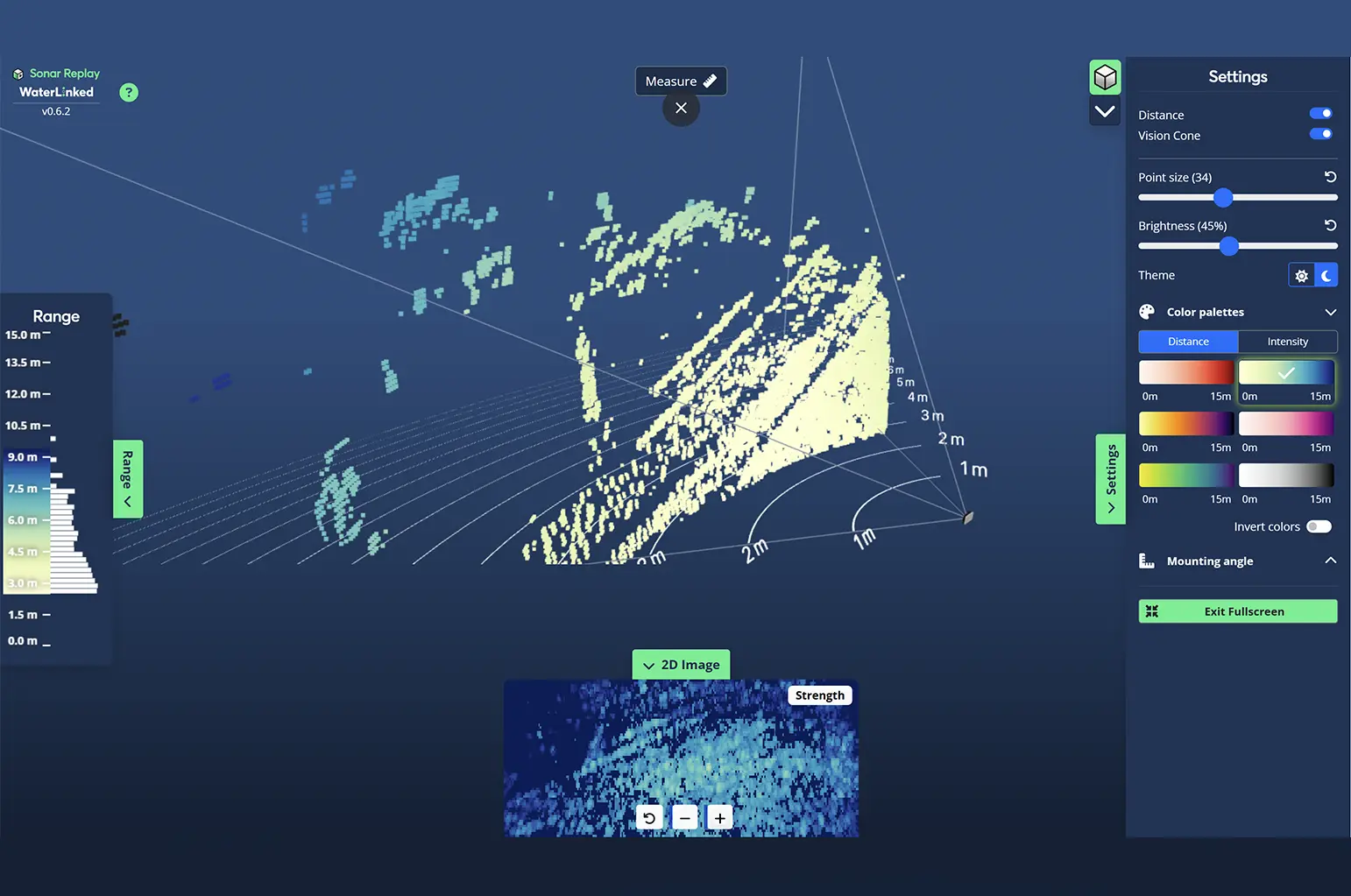

Navigate intuitively with real-time 3D imaging
Immediately generate a complete 3D image
Immediately generate a complete 3D image

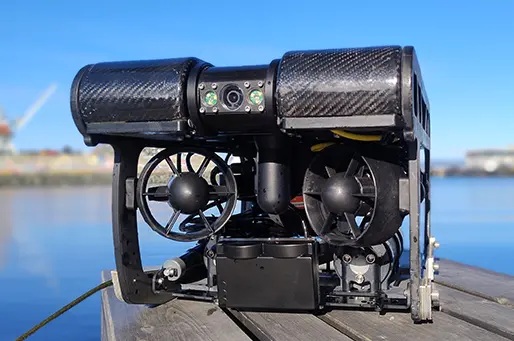

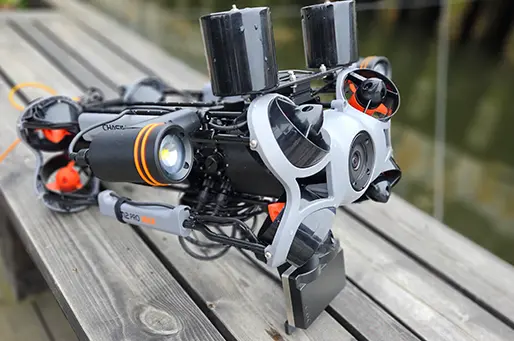

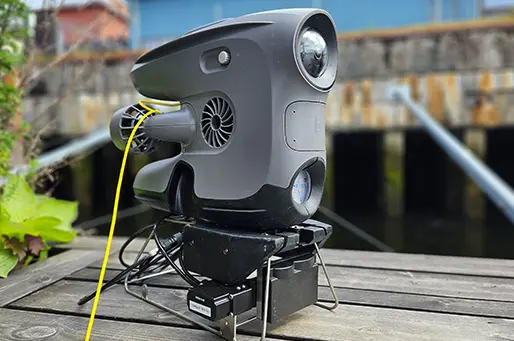

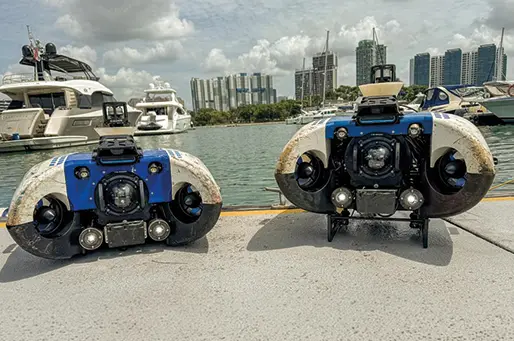

Upgrade small vehicles with 3D sonar technology

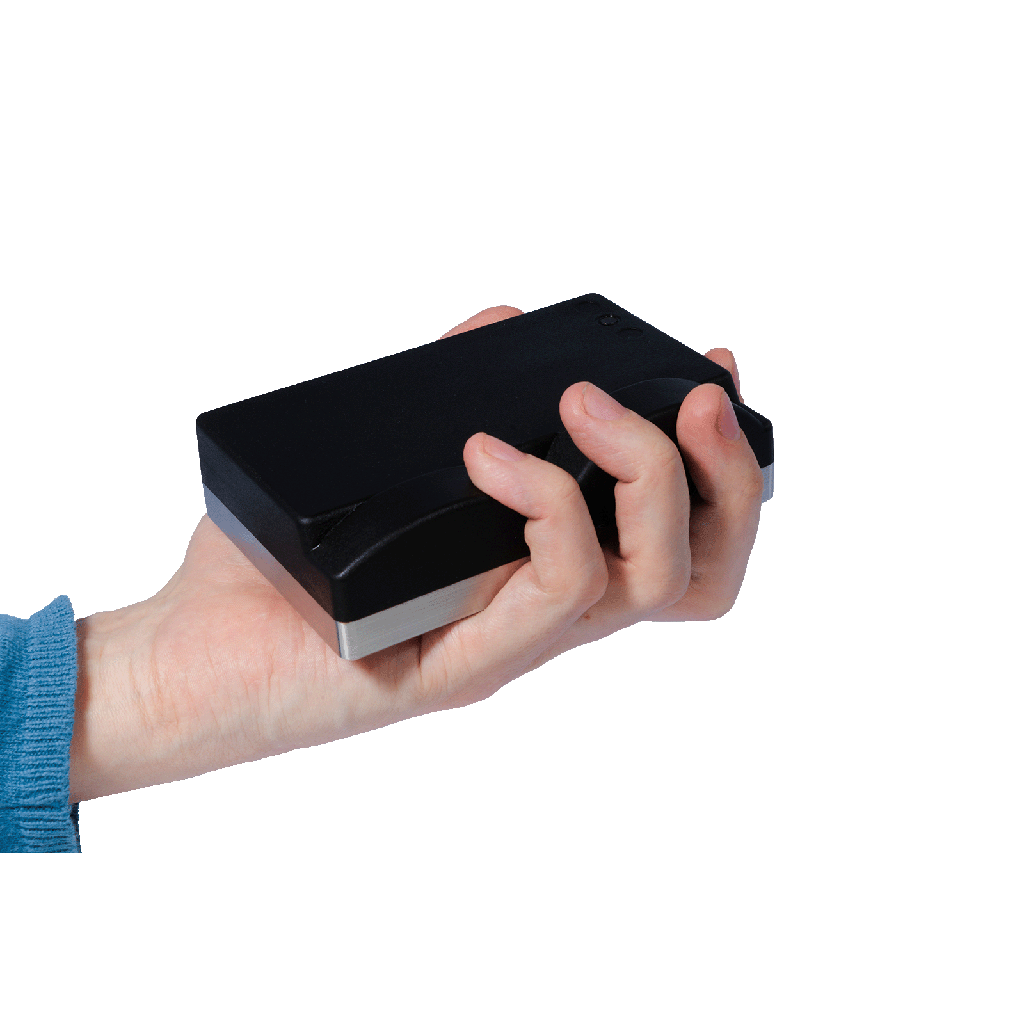

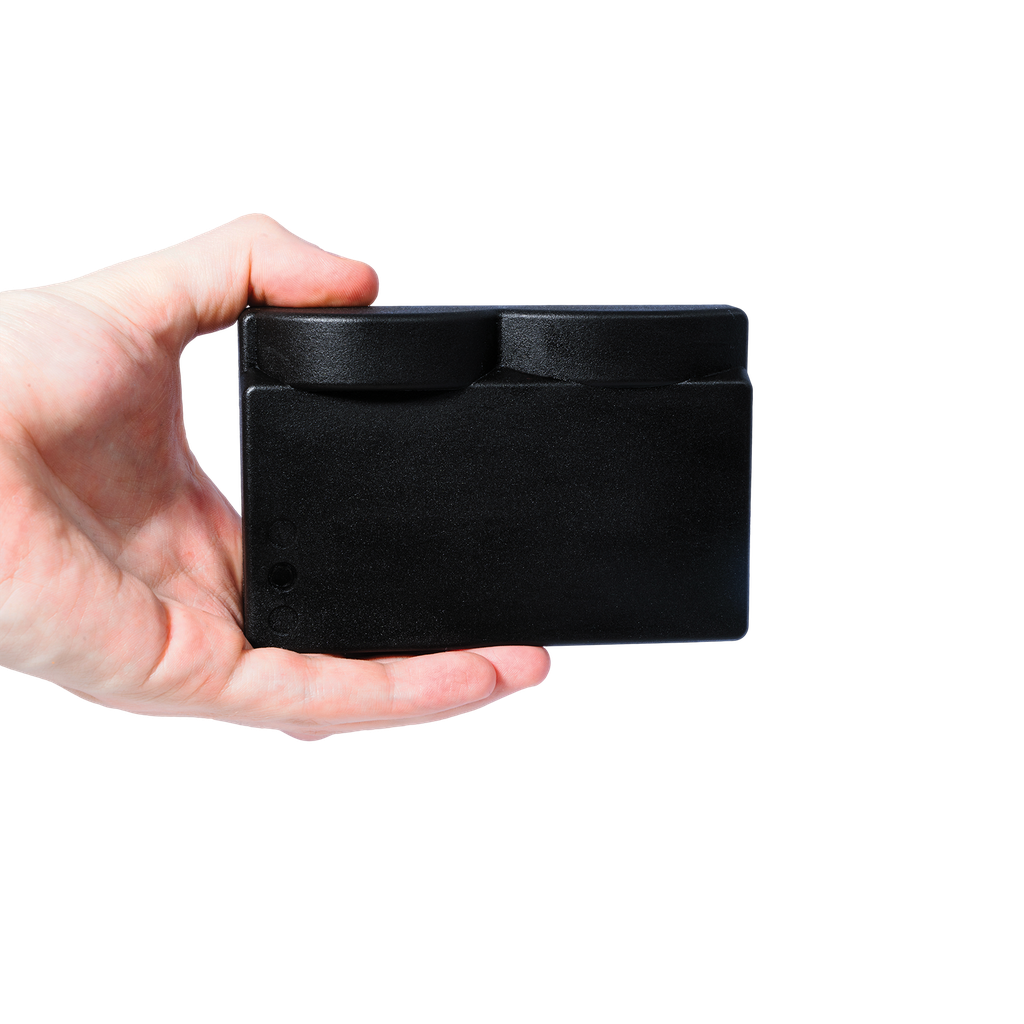

Only 12 x 8 x 4 cm and 0.39 kg in-water weight
Features

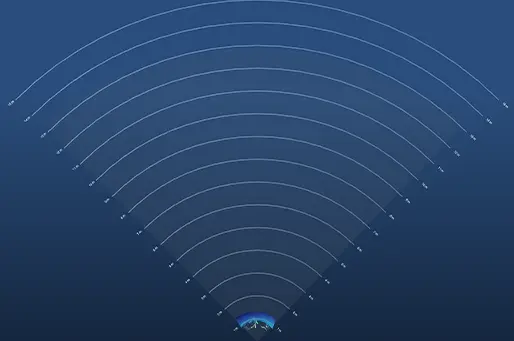

15m acoustic range, perfect for inspections

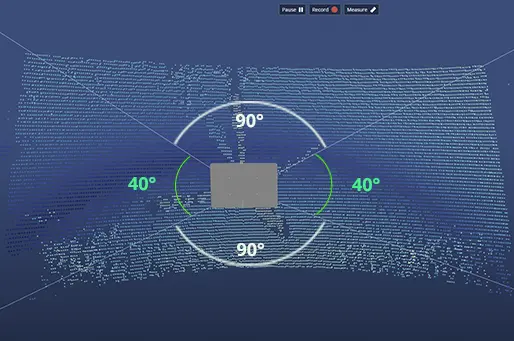

90° horizontal and 40° vertical field of view
Ethernet with 10 megabits connection
Extremely small size and low weight

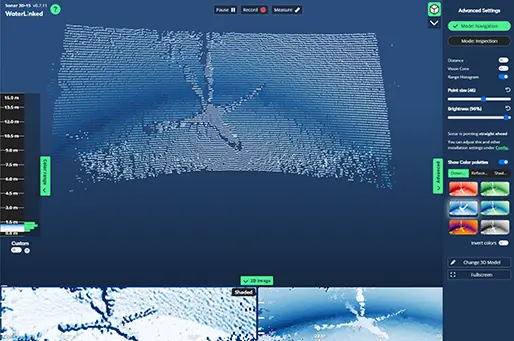

Web-based GUI; no software needed.
Merge easily with third-party software
Technical specifications
Mechanical
- Device height 80 mm
- Device width 120 mm
- Device depth 40 mm
- Device weight (air) 660 grams
- Device weight (submerged) 390 grams
- Depth rating 300 meters
- Materials Polyurethane, Stainless steel 316
Electrical / Interface
- Input voltage 10-30 Vdv
- Power consumption 20 W
- Power-on current surge 60 W
-
Physical interface
3m cable with interface module
6 wires (Power / Ethernet) - Indicator Status LED (Power)
- Communication Ethernet (10/100/1000 Base-T)
- Protocols Water Linked API
Acoustic / Performance
-
Transducer frequency
1.2 MHz - Navigation
2.4 MHz - Inspection -
Transducer beam angle
0.6° (horizontal) / 2.4° (vertical) - Navigation
0.4° (horizontal) / 1.1° (vertical) - Inspection -
Ping rate
5 Hz - Navigation
20 Hz - Inspection - Sensor assist Integrated AHRS/IMU
-
Range
15 m - Navigation
4 m - Inspection - Latency 200 ms
-
Resolution
4 mm - Navigation
1.5 mm - Inspection
Approvals
- CE certificate
- RoHS compliant
