Accurately track your position with our UGPS
Must be connected physically with the G2 system topside.
Easy integration on the smallest ROVs
Only on ROVs and instruments that have a twisted pair cable available.
Only on ROVs and instruments that have a twisted pair cable available.
External depth sensor needed
The ROV must have a depth sensor to provide the necessary depth information to the G2 Topside.
The ROV must have a depth sensor to provide the necessary depth information to the G2 Topside.
Technical specifications
Mechanical
- Device diameter 32 mm
-
Device height
121 mm
-
Device weight (air)
175 grams
-
Depth rating
300 meters
- Materials PEEK
-
Operating temperature
-10 to 60 °C
Electrical / Interface
- Physical interface 1 meter open ended cable (ø6.3 mm)
- 2 wires (analog signal)
- Max cable length Default is 1 meter
- Up to 300 meter as custom order
-
Acoustic / Performance
- Range R100: 100 meter radius and 100 meter down
- R300: 300 meter radius and 300 meter down
-
Transducer directivity
Omnidirectional
Approvals
-
CE certificate
Yes - RoHS compliant Yes

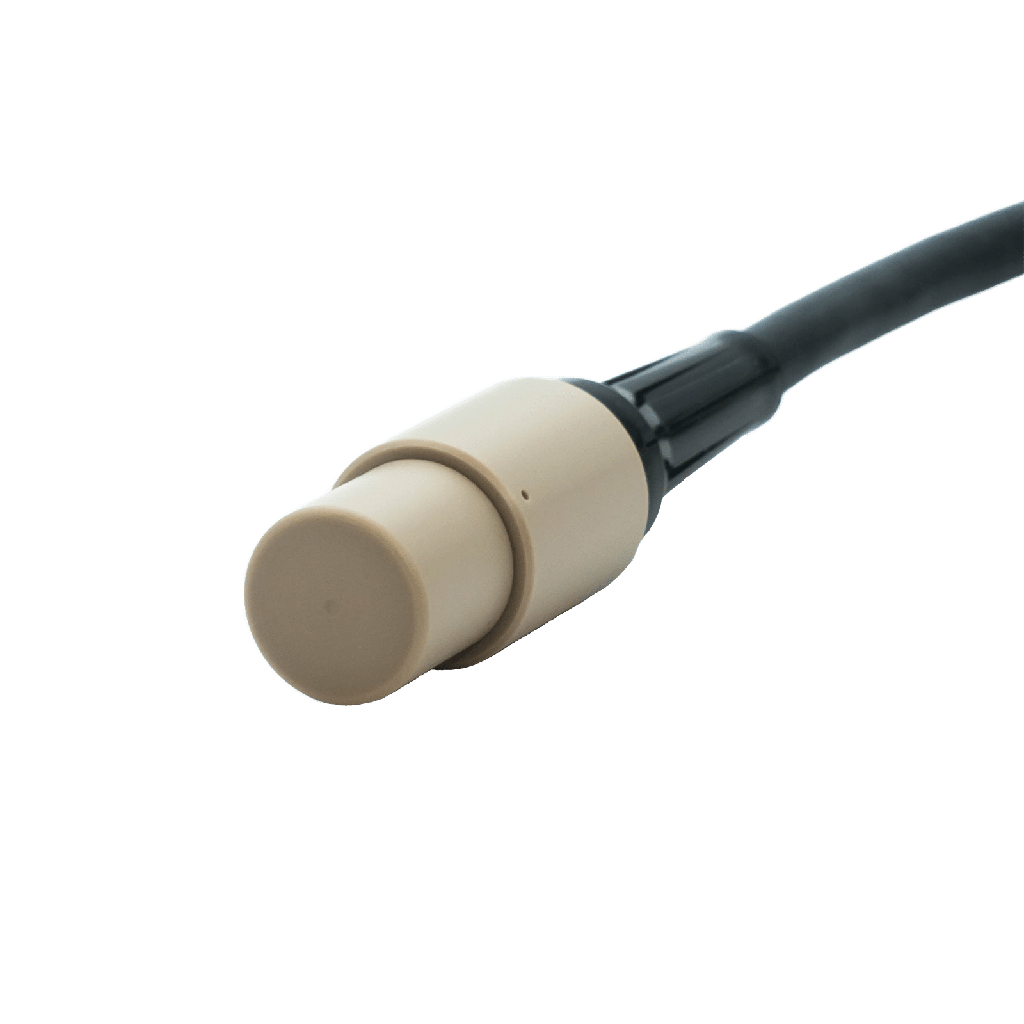

More about the Locator A1
The A1 Locator is the smallest of the locators currently available. It must be physically connected to the G2 Topside, either directly or through a full system integration. As depth is not measured by the A1 Locator, this information must be provided by the user and delivered to the G2 Topside using the Water Linked API.
