I/O Interface Electronics
Seamless data transmission
More about the I/O interface electronics

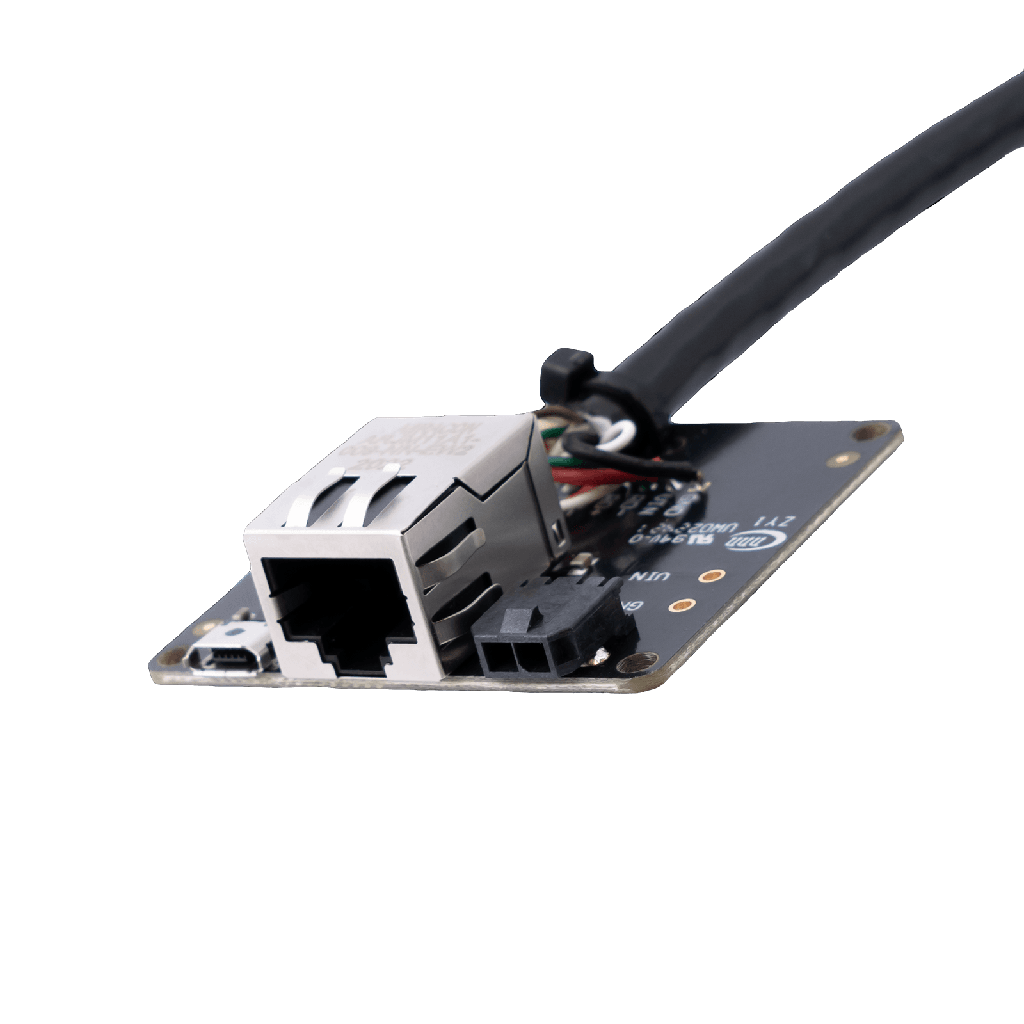

The I/O Interface Electronics Cable is designed to provide both power and Ethernet connectivity to a Doppler Velocity Log (DVL), ensuring a seamless interface for testing and integration. This cable serves as a plug-and-play solution for delivering stable power while enabling high-speed data transfer over Ethernet, making it ideal for bench testing, lab environments, and system diagnostics before deploying the DVL in the field.
Technical specifications
Mechanical
- External dimensions 50.6 x 47 x 18.6 mm (W x L x H)
- Mounting holes Fits M3 screws, 45 x 40 mm (W x L)
-
Weight175 grams
- Operating temperature –10°C to 60°C
Electrical / Interface
- Input voltage 10 V to 30 V
-
Power consumption
10 hour -
Physical interface
Power (Micro-Fit / Würth / pads)
Ethernet (8P8C / RJ45 connector)
UART (Micro USB)
DVL (8 through-hole pads)
-
- Communication Ethernet (100 Mbps)
- UART (115200 bauds)
- Indicators RX and TX LEDs on UART communication
-
Protocols
Water Linked API URL
Approvals
-
CE certificate
Yes - RoHS compliant Yes
