Use minimum 3 receivers so the system functions properly.
Accurate and reliable in deep water, high-noise and complex underwater environments
Omnidirectional
Ensures continuous signal detection regardless of locator's movement
Technical specifications
Mechanical
- Device diameter 32 mm
-
Device height
121 mm
-
Device weight (air)
175 grams
-
Depth rating
300 meters
- Materials PEEK
-
Operating temperature
-10 to 60 °C
Electrical / Interface
- Input voltage 10-18 V
- Power consumption 35 mAh at 12V (delivered from Master-D1)
-
Cable connector
Binder Series-770 (IP67) URL
- Max cable length 100 meter
Acoustic / Performance
-
Transducer directivity
Omnidirectional
Approvals
-
CE certificate
Yes - RoHS compliant Yes

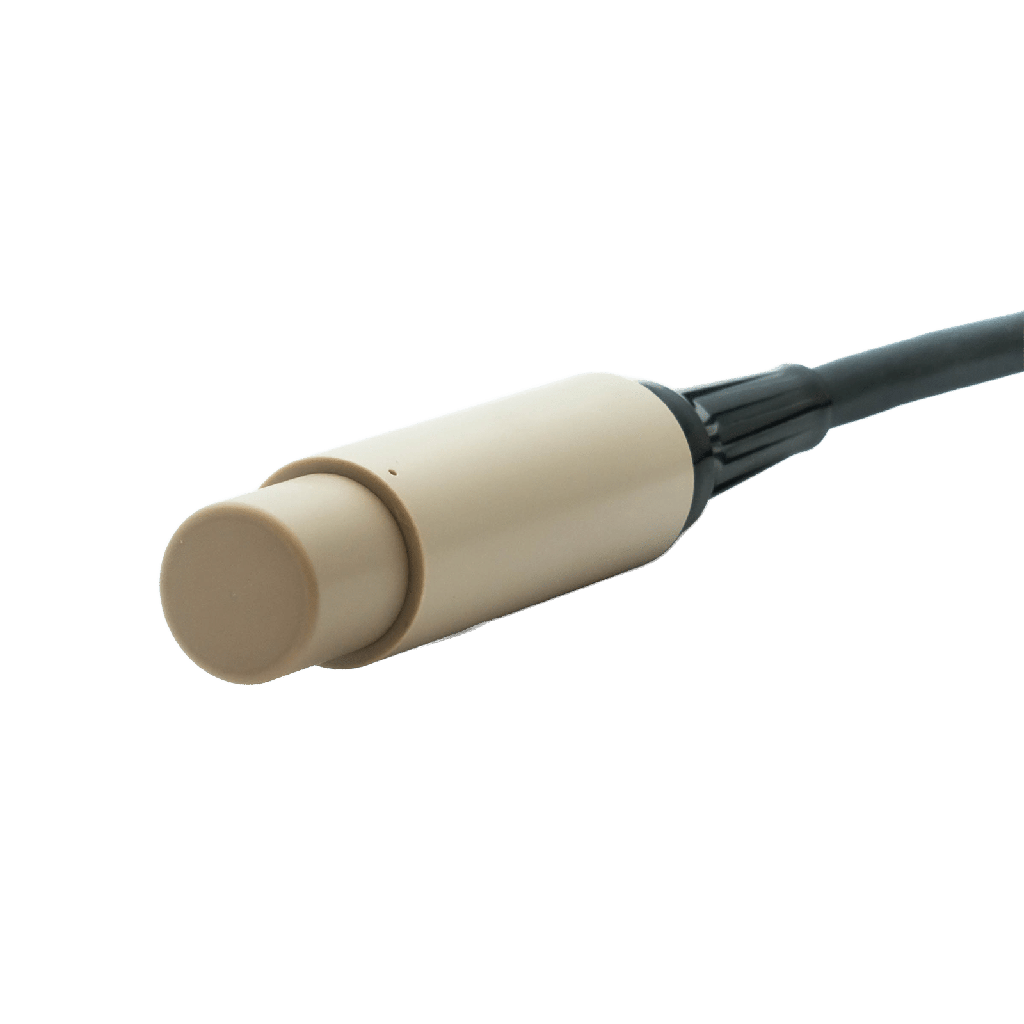

More about the Receiver D1
The Receiver-D1 is a digital low-noise, high
sensitivity hydro acoustic receiver that
converts acoustic waves to a digital data
stream.
The receiver is equipped with a wideband
analog front-end width a large dynamic
range followed by advanced digital signal
processing functionality.
The electrical interface complies with the
Water Linked D1 communication standard.
Block diagram Underwater GPS with seperate receivers
If you want to set up a baseline with separate receivers, you could order them individually. We recommend using four receivers for your UGPS to work properly.
