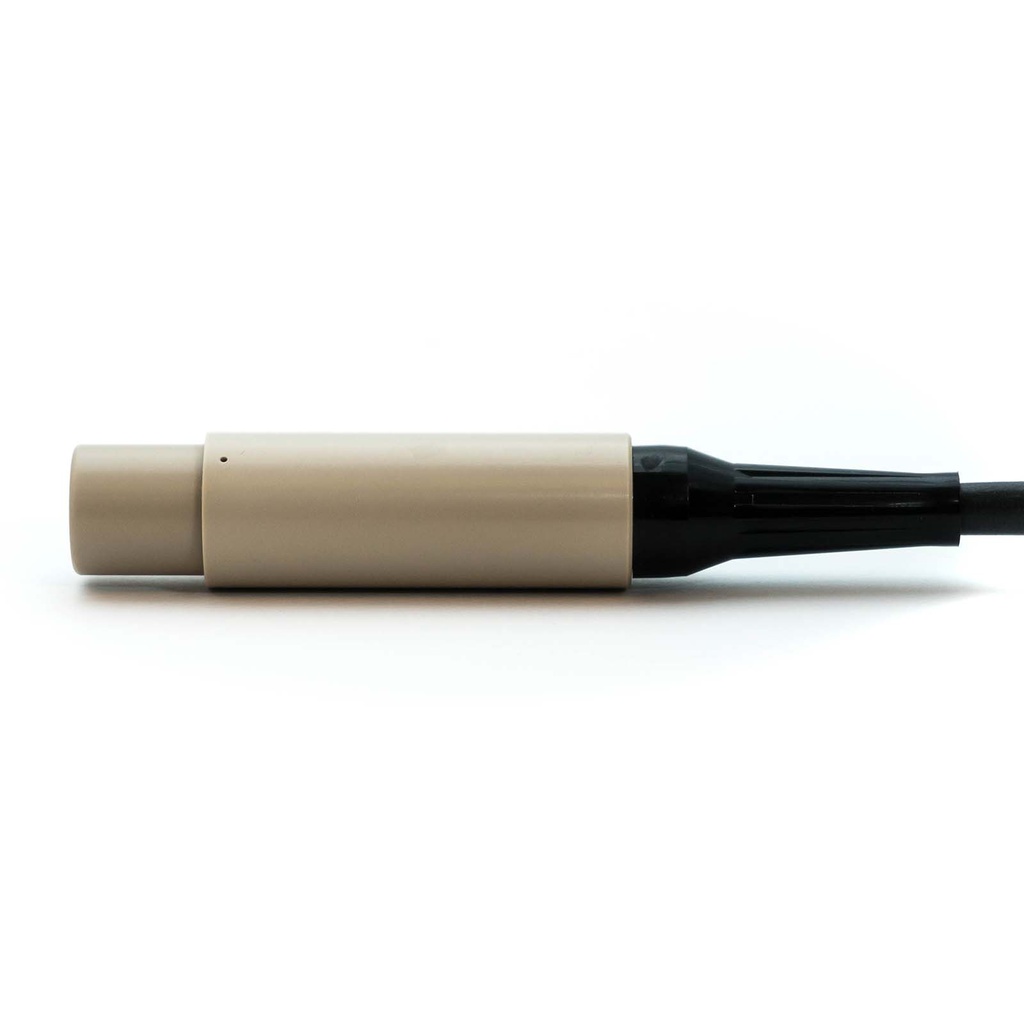

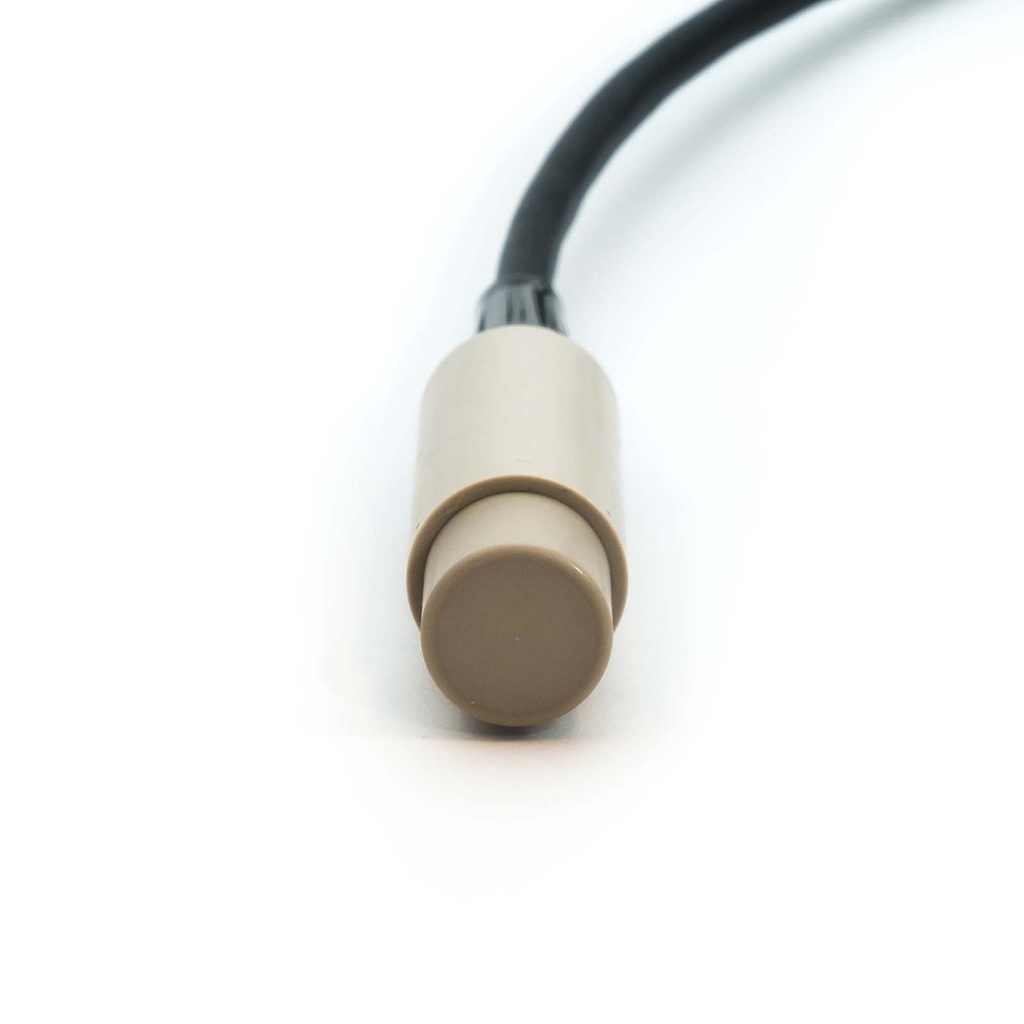

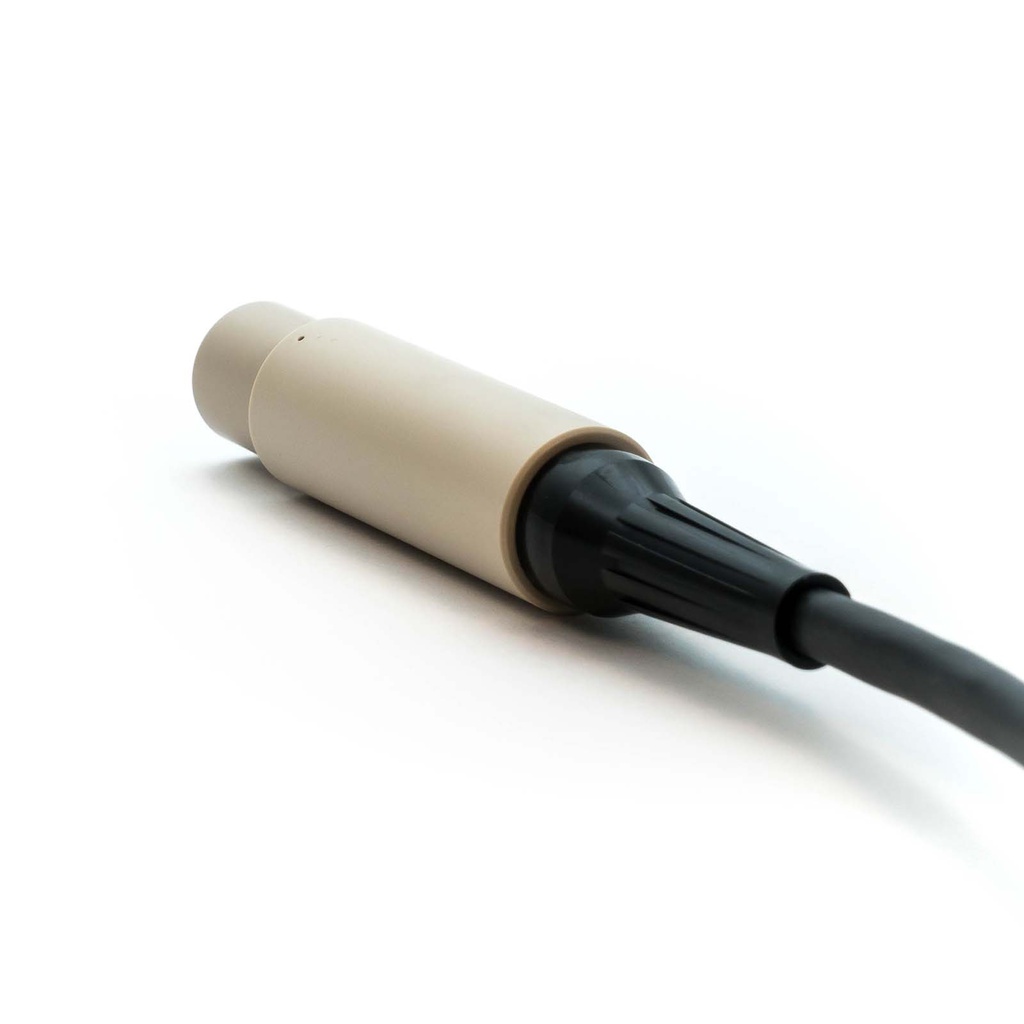

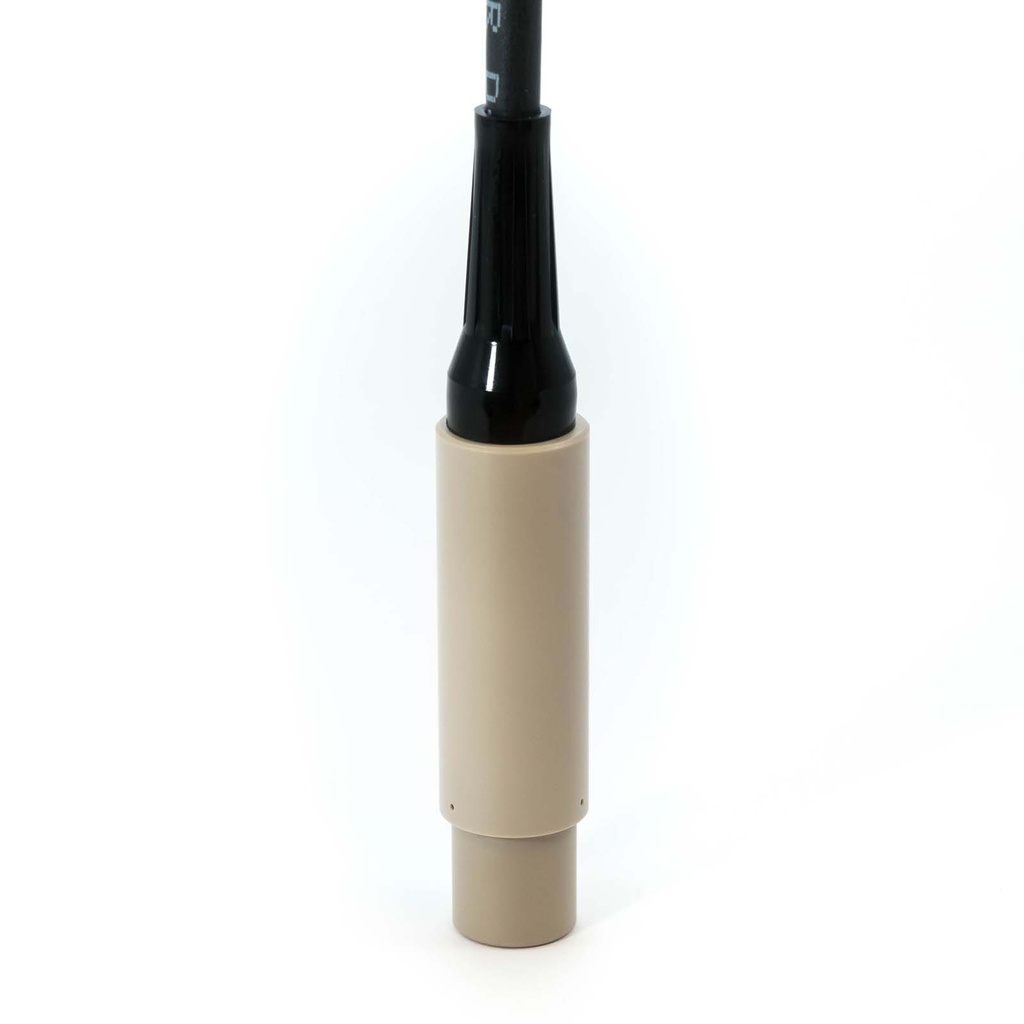

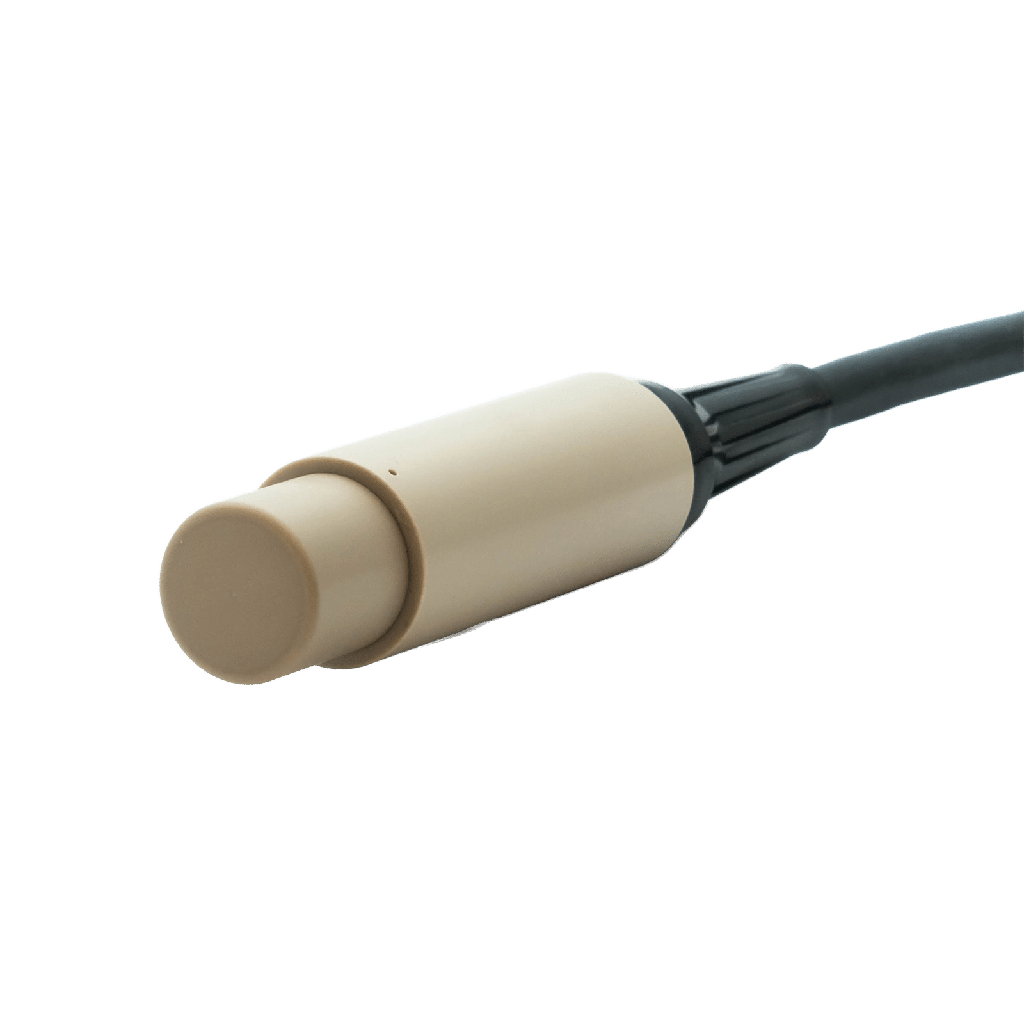

Receiver D1

Acoustic receiver for Underwater GPS G2 systems.

Enable design of large and/or non-uniform baselines.

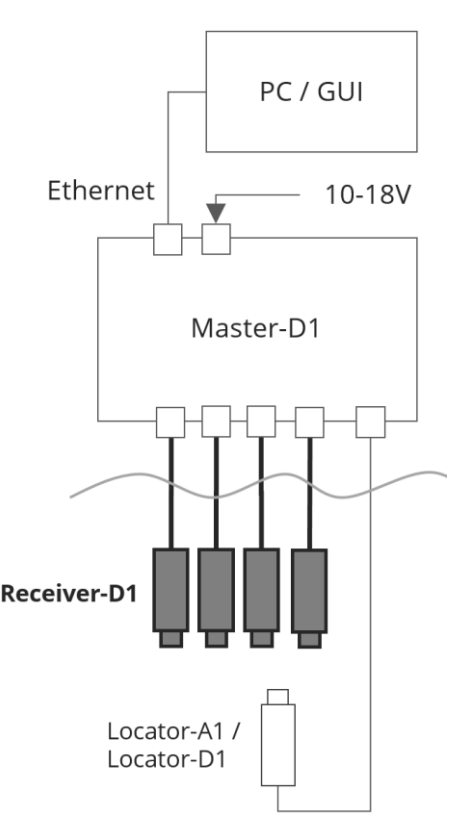

You need 4 receivers to form a complete baseline.

https://waterlinked.com/web/image/product.template/128/image_1920?unique=dd72ed9

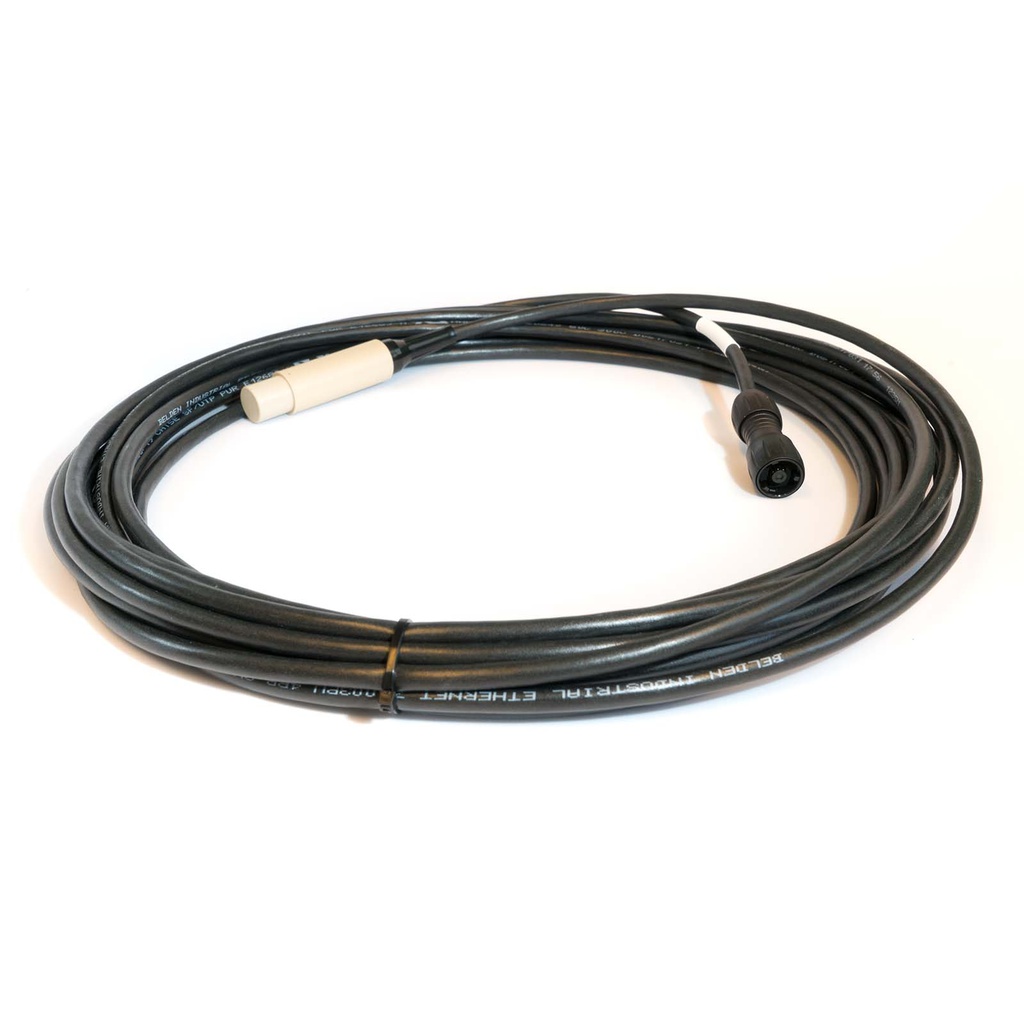

  • Cable

This combination does not exist.

830.00 830.0 USD 0.00

kr 0.00

Not Available For Sale

SKU: WL-21005-4-010
0.00 830.00

Technical specifications

Mechanical

  • Device diameter 20 mm
  • Device height 71 mm
  • Device weight (air) 36 grams
  • Depth rating 300 meters
  • Materials PEEK
  • Operating temperature -10 to 60 °C

Electrical / Interface

  • Input voltage 10-18 V
  • Power consumption 35 mAh at 12V (delivered from Master-D1)

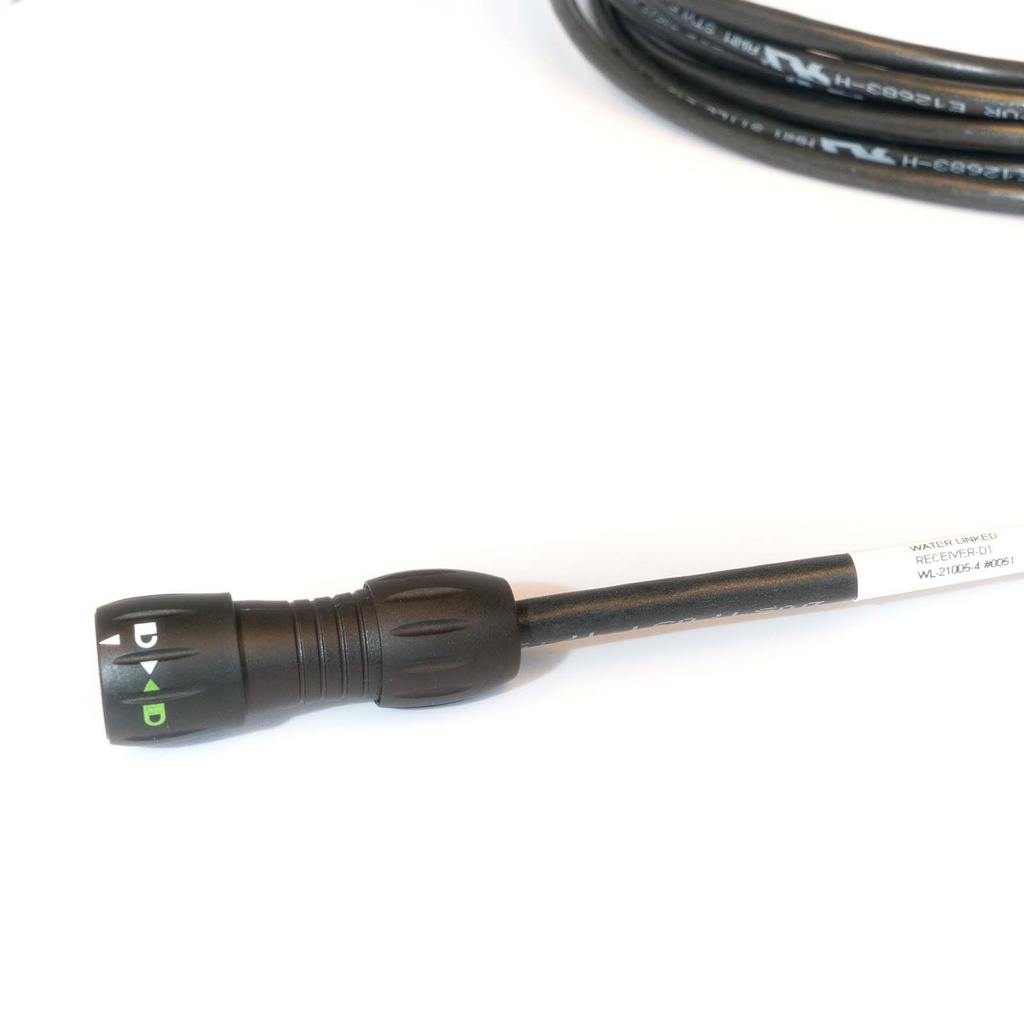

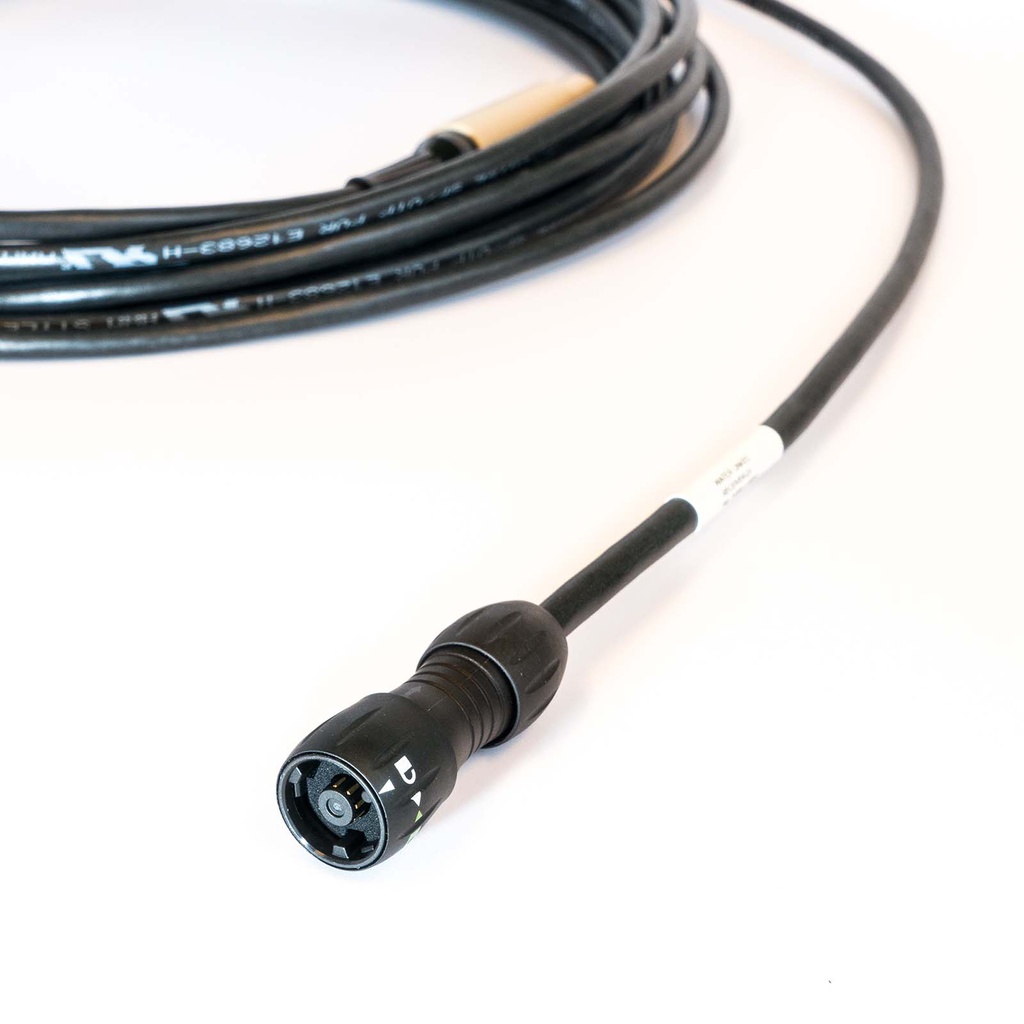

  • Cable connector

    Binder Series-770 (IP67) URL

  • Max cable length 100 meter

Acoustic / Performance

  • Transducer directivity Omnidirectional

Approvals

  • RoHS compliant
  • CE
