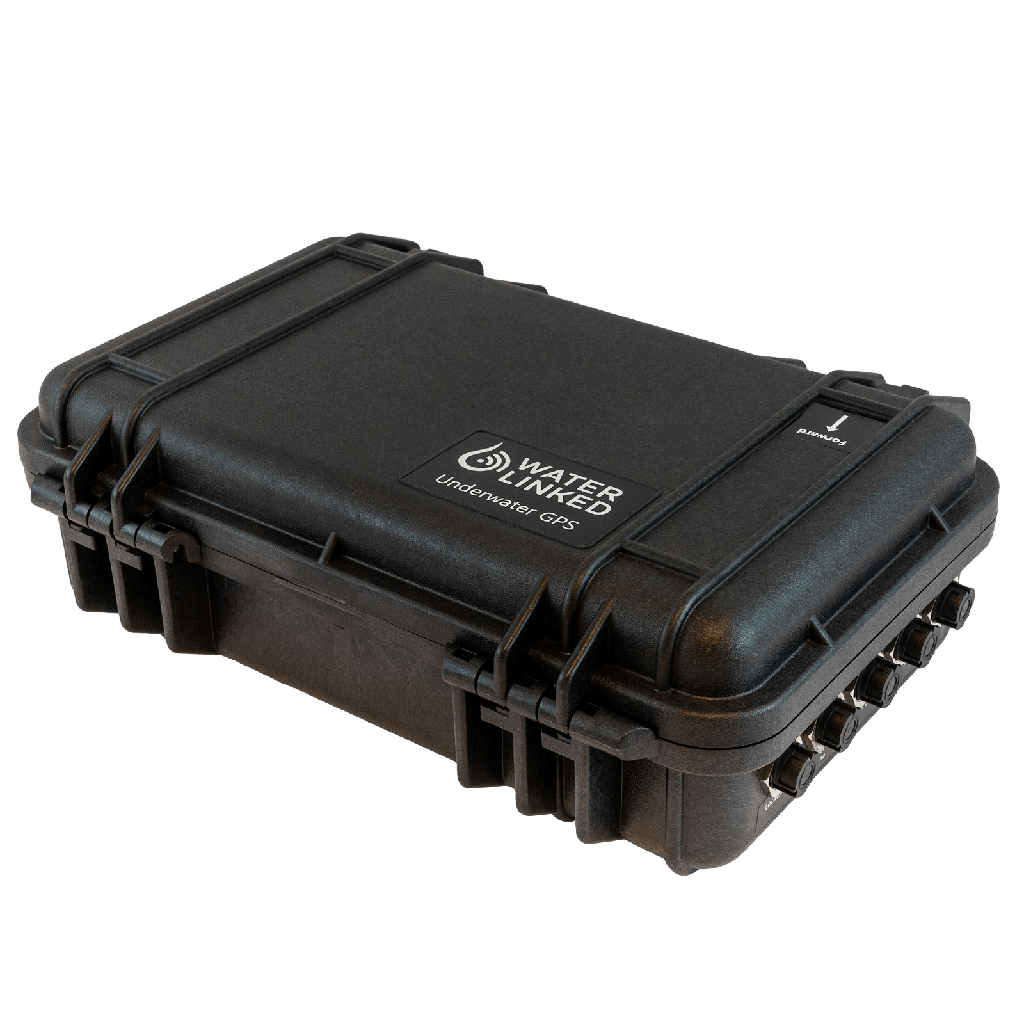

Underwater GPS G2 Standard Kit

https://waterlinked.com/web/image/product.template/132/image_1920?unique=39f6896

  • Range

This combination does not exist.

$ 8,850.00 8850.0 USD $ 0.00

kr 0.00

Not Available For Sale

SKU: WL-11001-2-R100-U1-ANT
Contact Us
$ 0.00 $ 8,850.00
Quick and simple system set-up

No third-party sensors required


Efficiently navigate complex subsea terrains

Remain on course in murky, turbid environments

Reduce risk of vehicle damage


Follow your vehicles with absolute positioning

Features

Reliable positioning in challenging conditions


Easy to set up


Miniature locators



100m and 300m range versions available


Water Linked API for custom integration

Web-based GUI

Technical specifications

Mechanical

  • IP rating IP67 (Topside)
  • Depth rating 200 m (U1 Locator)
  • Operating temperature –10°C to 60°C
  • Kit weight ~ 4-6 kg
  • Topside external dimensions 29.6 x 21.2 x 9.6 cm

Electrical / Interface

  • Input voltage 10 V to 30 V DC
  • Power consumption 0.25 A at 12 V
  • Power-on current surge 2.30 A at 12 V
  • Communication

    WiFi  (802.11ac/a/b/g/n)
    Ethernet (100 Mbps)
    NMEA 0183

  • Protocols

    Water Linked API URL
  • User interface

    Web based GUI (local connection) DEMO

Acoustic / Performance

  • Range 100 or 300 meter radius (depending on version selected)
  • Ping rate 2-4 Hz
  • Accuracy

    Horizontal range : < 0.2%
    Horizontal angle : < 1°
    Vertical (depth) : < 1%
  • Long term drift

    Locator A1: None
    Locator U1: ~1 meter per 6 hours

  • Transducer frequency 31.25 kHz to 250 kHz (200 kHz typical)
  • Transducer directivity Omnidirectional, 360 degrees
  • Operating principle Time of flight, Triangulation
  • Integrated IMUs

    Yost Labs TSS-NANO URL
    TDK Invensense ICM-20948

  • Integrated GPS u-blox NEO-M8T

Approvals

  • CE Yes
  • RoHS compliant
