  2. Underwater GPS G2 Topside

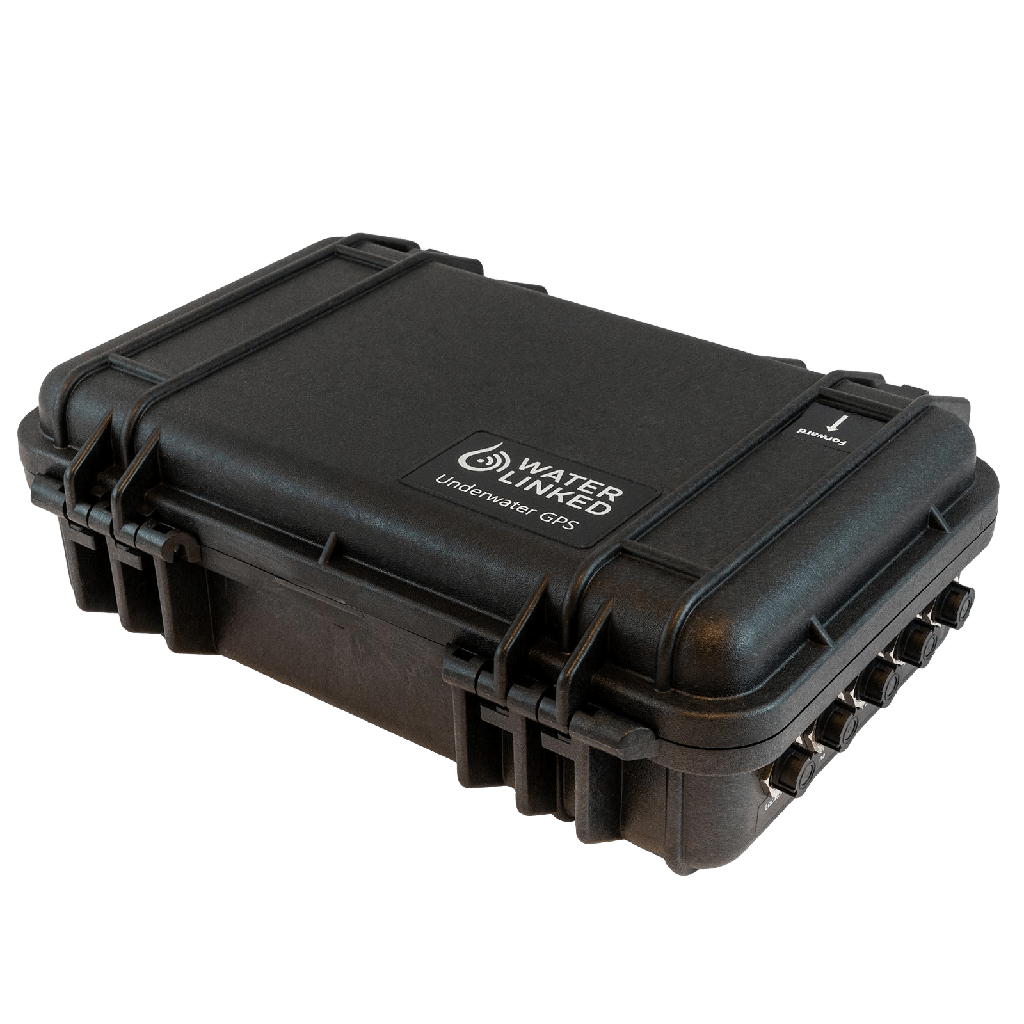

Underwater GPS G2 Topside

https://waterlinked.com/web/image/product.template/133/image_1920?unique=edb0108

  • Range

This combination does not exist.

$ 4,550.00 4550.0 USD $ 47.00

kr 509.00

Not Available For Sale

SKU: WL-21021-2-R100
Contact Us
$ 47.00 $ 4,550.00
Control center for UGPS

Calculates the exact position of the tracked object


Excellent protection

Water tight, dust proof.


Easy to carry


Light pelican case you can transport swiftly

Technical specifications

Mechanical

  • IP rating IP67 (when closed)
  • Operating temperature
     –10°C to 60°C
  • Topside external dimensions 29.6 x 21.2 x 9.6 cm


Electrical / Interface

  • Input voltage 10 V to 30 V DC
  • Power consumption 0.25 A at 12 V
  • Power-on current surge 2.30 A at 12 V
  • Communication
     WiFi  (802.11ac/a/b/g/n)
  • Ethernet (100 Mbps)
  • NMEA 0183
  • Protocols
      Water Linked API URL
  • User interface  Web based GUI (local connection)
​
​

Acoustic / Performance

  • Range 100 or 300 meter radius
  • (depending on version selected)
  • Ping rate
     2-4 hz
  • Accuracy Horizontal range : < 0.2%
  • Horizontal angle : < 1°
  • Vertical (depth) : < 1%
  • Long term drift
     Locator A1: None
  • Locator U1: ~1 meter per 6 hours
  • Transducer frequency 31.25 kHz to 250 kHz (200 kHz typical)
  • Operating principle
     Time of flight, Triangulation
  • Integrated IMUs Yost Labs TSS-NANO
  • TDK Invensense ICM-20948
  • Integrated GPS
     u-blox NEO-M8T


Approvals

  • CE certificate
     Yes

More about the UGPS Topside

This product is normally delivered as part of a complete Underwater GPS G2 system. But if you already own a Water Linked locator and baseline, you can purchase this product to get a complete system.


The Pelican Case topside is the best option for most use cases. The housing is watertight, dust-proof and provides excellent protection against the elements. The integrated handle makes it easy to carry.

Downloads/Resources



GUI Demo
 URL
API protocol documentation

 URL
API example code

 URL
