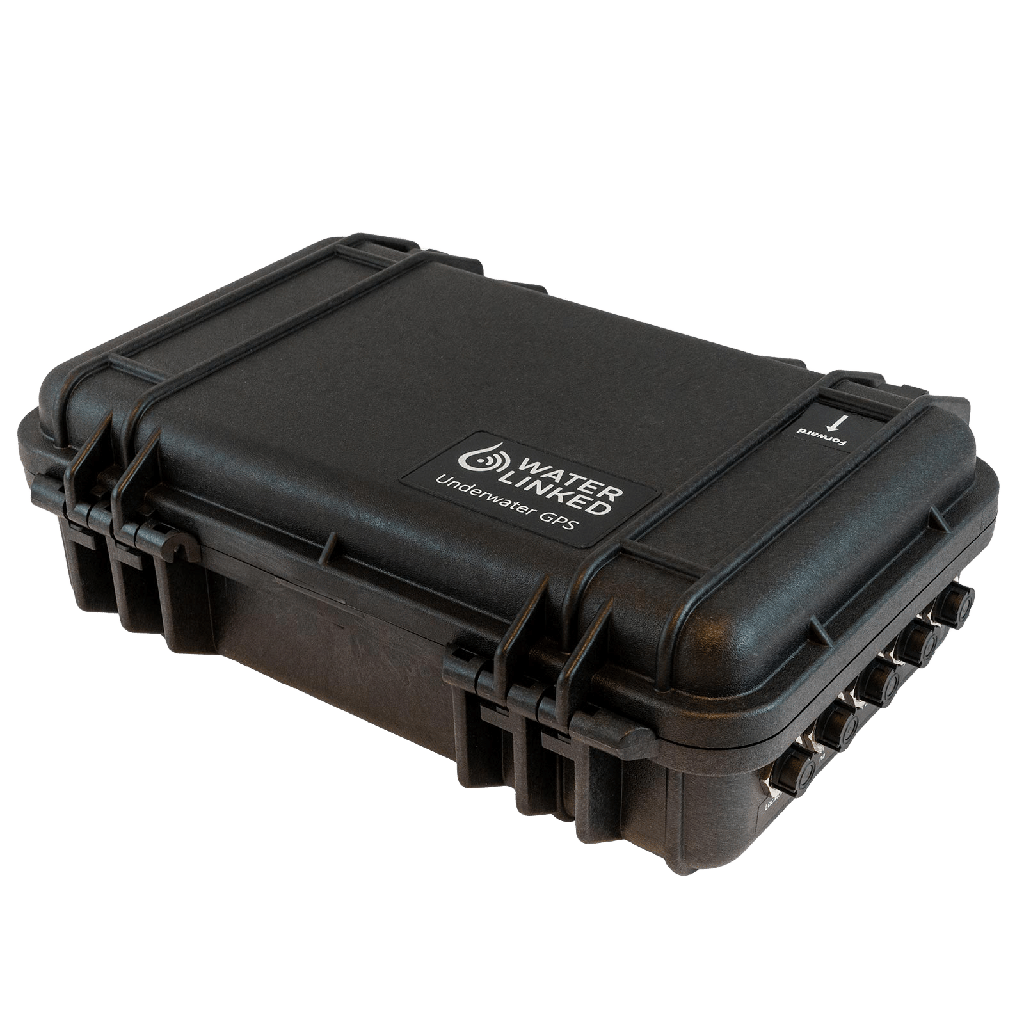

Underwater GPS G2 BlueROV2 Kit

https://waterlinked.com/web/image/product.template/131/image_1920?unique=11a940c

  • Range

This combination does not exist.

$ 7,530.00 7530.0 USD $ 0.00

kr 0.00

Not Available For Sale

SKU: WL-11001-2-R100-A1-ANT-BRINT
Contact Us
$ 0.00 $ 7,530.00
Range

Up to 300 m

Accuracy

< 1%

Directivity

Omnidirectional

Technical specifications

Mechanical

  • IP rating IP67 (Topside)
  • Depth rating 300 m (A1 Locator)
  • Operating temperature –10°C to 60°C
  • Kit weight ~ 4-6 kg
  • Topside external dimensions 29.6 x 21.2 x 9.6 cm

Electrical / Interface

  • Input voltage 10 V to 30 V DC
  • Power consumption 0.35 A at 12 V
  • Power-on current surge 2.70 A at 12 V
  • Communication

    Ethernet (Fathom-X to BlueRobotics FXTI)
    WiFi (802.11ac/a/b/g/n)
    NMEA 0183
  • Protocols

    Water Linked API URL

  • User interface

    Web based GUI (local connection) DEMO

Acoustic / Performance

  • Range

    100 or 300 meter radius
    (depending on version selected)
  • Ping rate 2-4 Hz
  • Accuracy

    Horizontal range : < 0.2%
    Horizontal angle : < 1°
    Vertical (depth) : < 1%

  • Long term drift

    Locator A1: None
    Locator U1: ~1 meter per 6 hours

  • Transducer frequency 31.25 kHz to 250 kHz (200 kHz typical)
  • Transducer directivity Omnidirectional, 360 degrees
  • Operating principle Time of flight, Triangulation
  • Integrated IMUs

    Yost Labs TSS-NANO URL
    TDK Invensense ICM-20948

  • Integrated GPS u-blox NEO-M8T

Approvals

  • CE Yes
  • RoHS compliant
