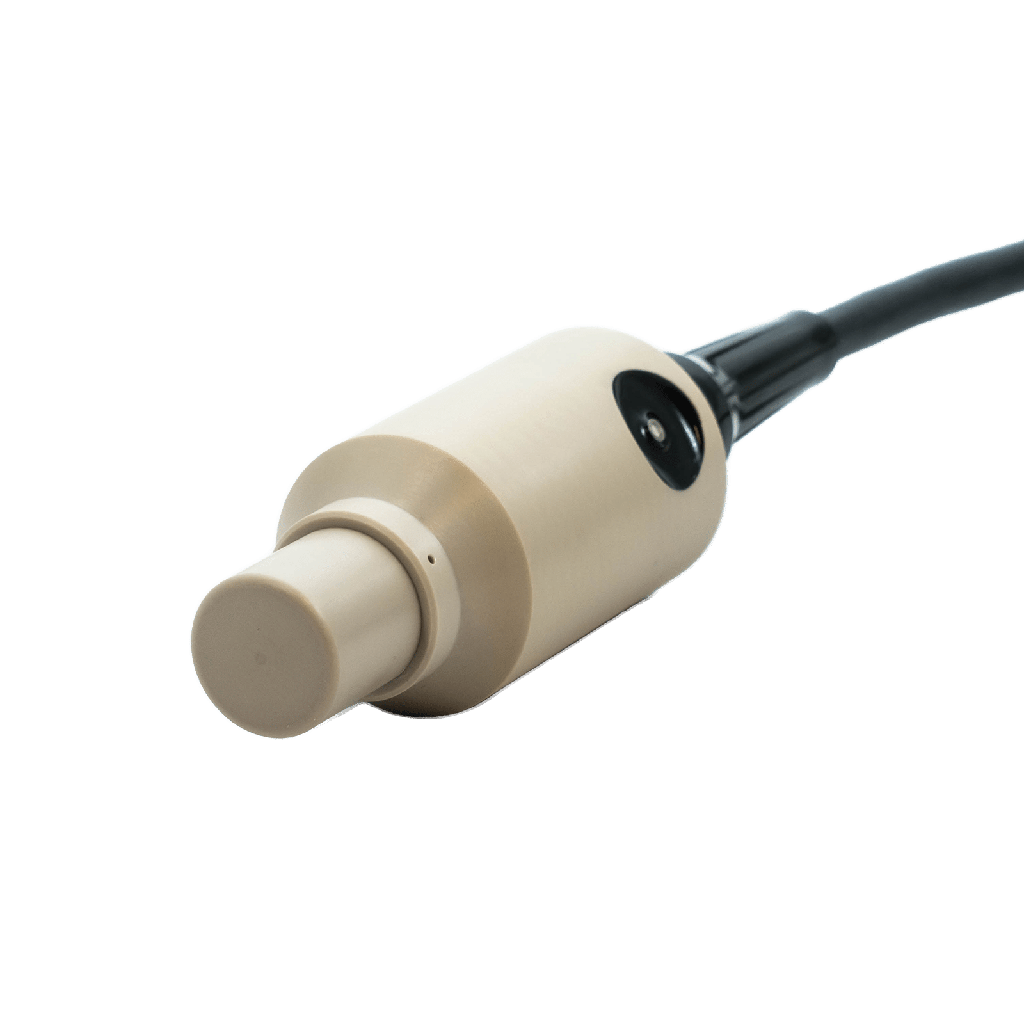

Locator D1
Locator device for Underwater GPS G2 systems.
Fully integrated with its own depth sensor and 50 meter cable/tether.
$ 1,950.00
$ 1,950.00
Accurately track your position
No external requirements needed
Easily integrate with diver umbilical
Plug & play solution
Plug & play solution
Depth sensor integrated
No need for external sensors
No need for external sensors
Technical specifications
Mechanical
- Device diameter 32 mm
-
Device height
121 mm
-
Device weight (air)
175 grams
-
Depth rating
300 meters
- Materials PEEK
-
Operating temperature
-10 to 60 °C
Electrical / Interface
- Physical interface 50/100 meter open ended cable
- 6 wires (pwr/comm), ø6.3 mm
- Input voltage 10-18 V
- Power consumption 130 mAh at 12V (delivered from Master-D1)
- Cable connector Binder Series-770 (IP67) URL
- Max cable length 100 meter
-
Acoustic / Performance
- Range R100: 100 meter radius and 100 meter down
- R300: 100 meter radius and 100 meter down
-
Transducer directivity
Omnidirectional
Approvals
-
CE certificate
Yes - RoHS compliant Yes
