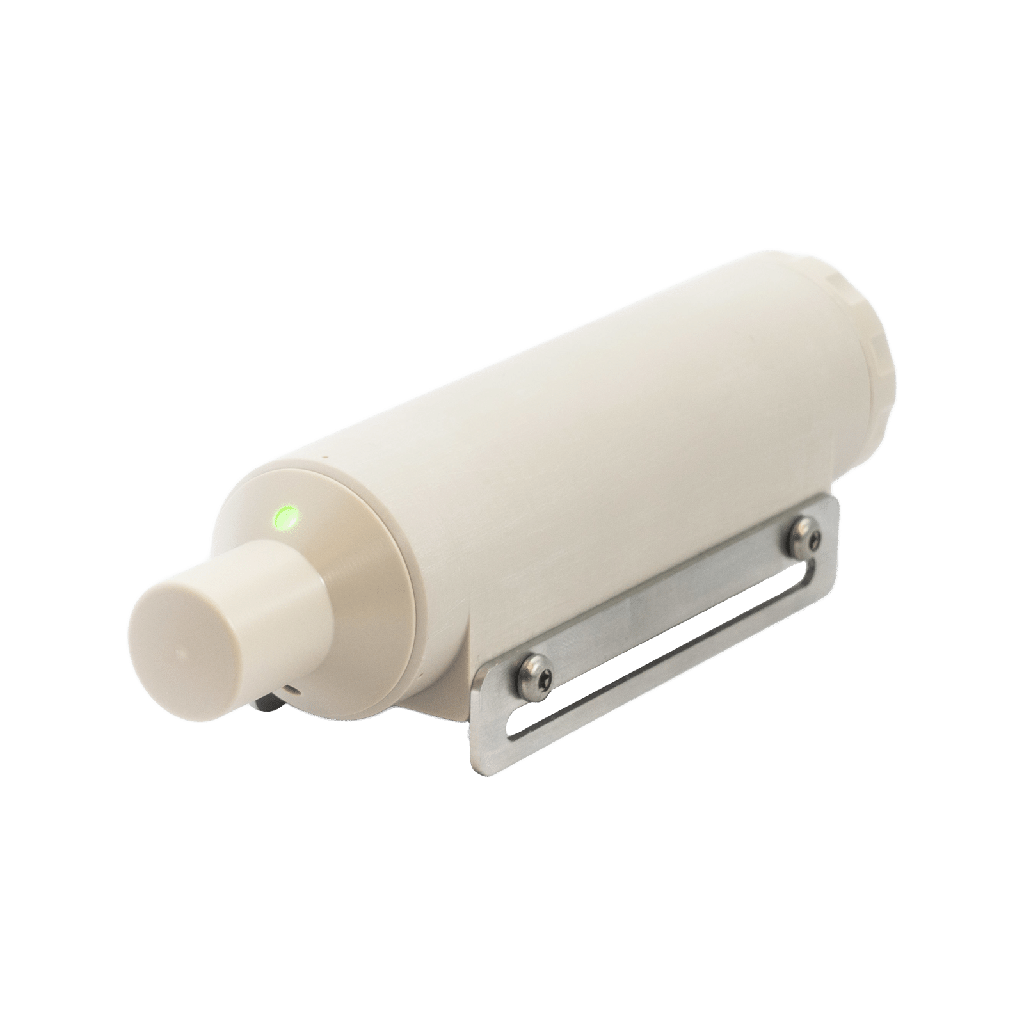

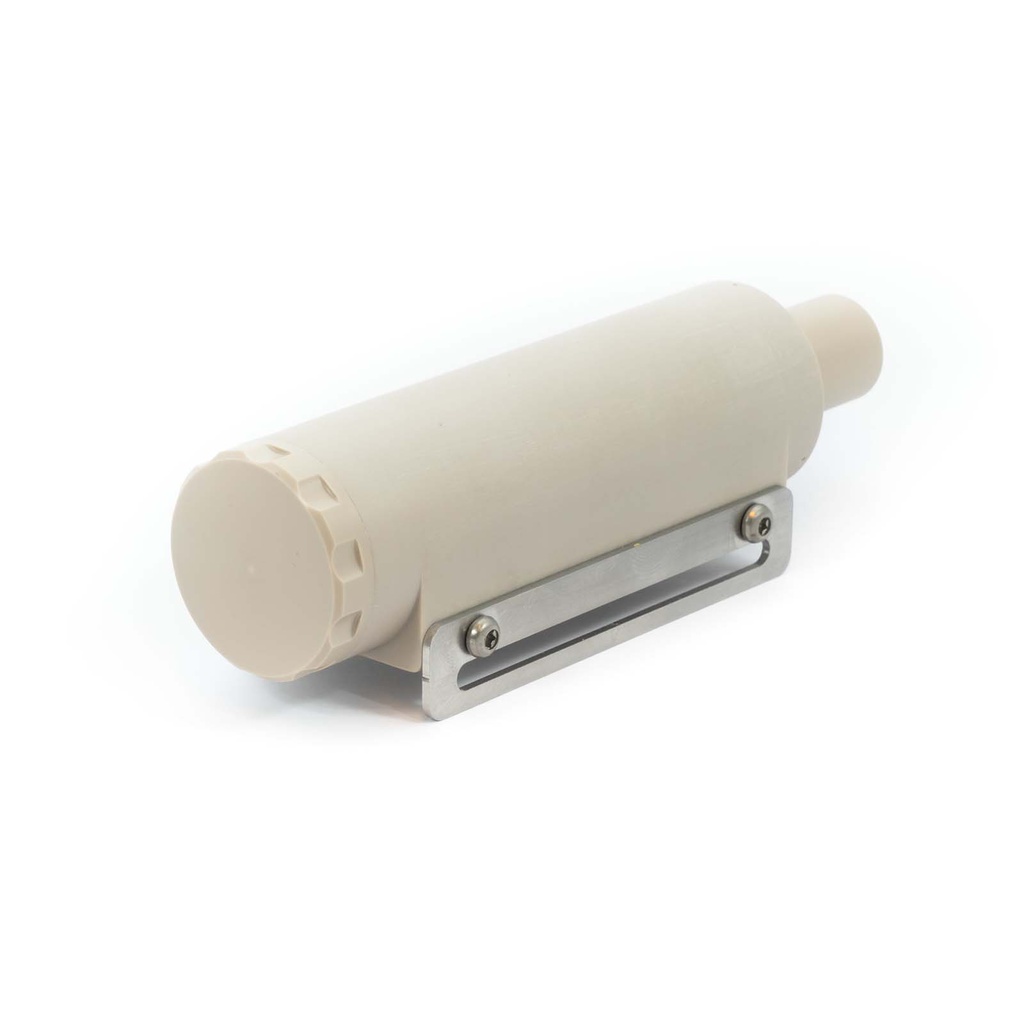

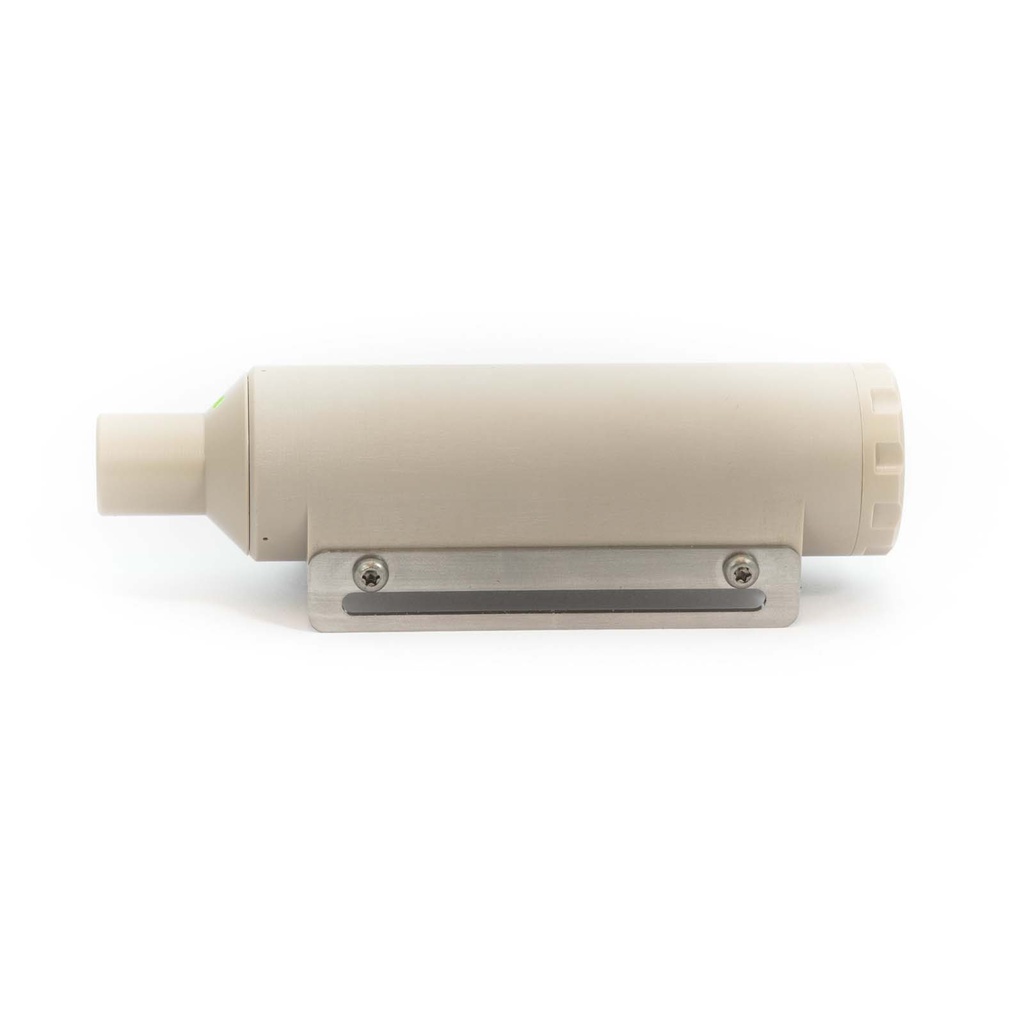

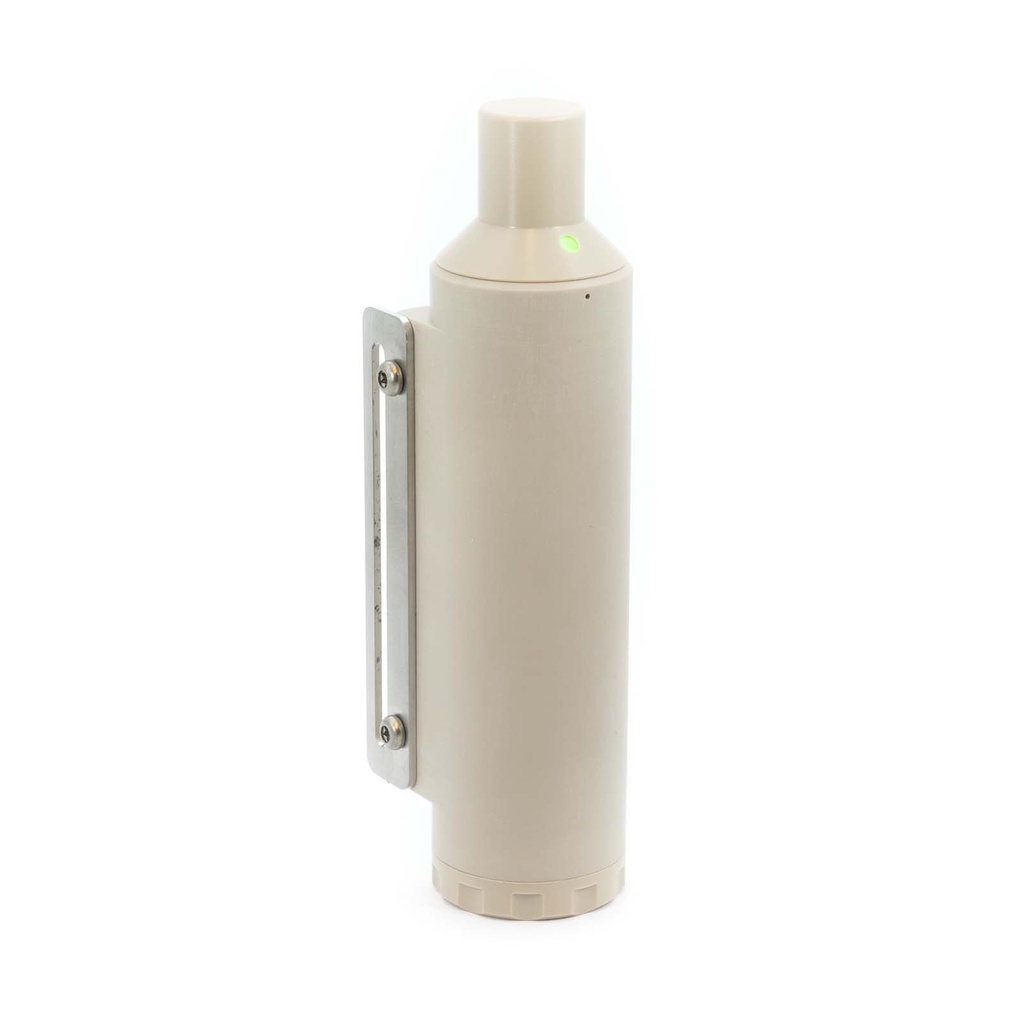

Locator U1

https://waterlinked.com/web/image/product.template/122/image_1920?unique=381e92d

2,420.00 2420.0 USD 0.00

kr 0.00

Not Available For Sale

This combination does not exist.

0.00 2,420.00
Wireless navigation and positioning

Battery powered, no cables needed


Save weight on your underwater missions

Miniature locator, weighs 75 grams (submerged)


Easy installation




No external requirements needed

Technical specifications

Mechanical

  • Device diameter 32 mm
  • Device height 121 mm
  • Device weight (air) 175 grams
  • Device weight (submerged)  75 grams
  • Depth rating 300 meters
  • Materials PEEK
  • Operating temperature

    -10 to 60 °C

Electrical / Interface

  • Battery size 3,7 volt, 3300 mAh
  • Battery lifetime 10 hour
  • Charging USB-C
  • Charging time ~ 6 hours
  • Indicator GPS status LED (Search, Lock, No signal)

Acoustic / Performance

  • Range R100: 100 meter radius and 100 meter down
  • R300: 300 meter radius and 200 meter down
  • Transducer directivity Omnidirectional

Approvals

  • CE certificate
    Yes
  • RoHS compliant Yes

More about the Locator U1​

The Locator-U1 is a battery-powered, digital hydroacoustic locator that delivers precision underwater tracking—without the need for a tether. Whether you’re a diver, ROV operator, or working in remote underwater environments, this locator ensures mobility and ease of use.

Why Choose the Locator-U1?



Wireless Freedom

With an internal GPS-based time sync module, the Locator-U1 eliminates the need for wired connections, making it ideal for applications where power and tethering are impractical.

Perfect for Divers & ROVs

Designed for battery-powered underwater operations, this locator is the go-to solution for mobile applications, ensuring reliable tracking where wired locators are not an option.

Long-Lasting, Rechargeable Battery

Equipped with a rechargeable battery, the Locator-U1 provides up to 6 hours of operation on a single charge. Charge conveniently with the included USB-C cable and a standard 5V/2A USB wall charger.

Quick & Simple Setup

Before deployment, the Locator-U1 syncs with GPS for optimal accuracy. A built-in status LED provides real-time feedback on GPS lock, ensuring you’re ready to go in minutes.

Easy Channel Selection & Integration

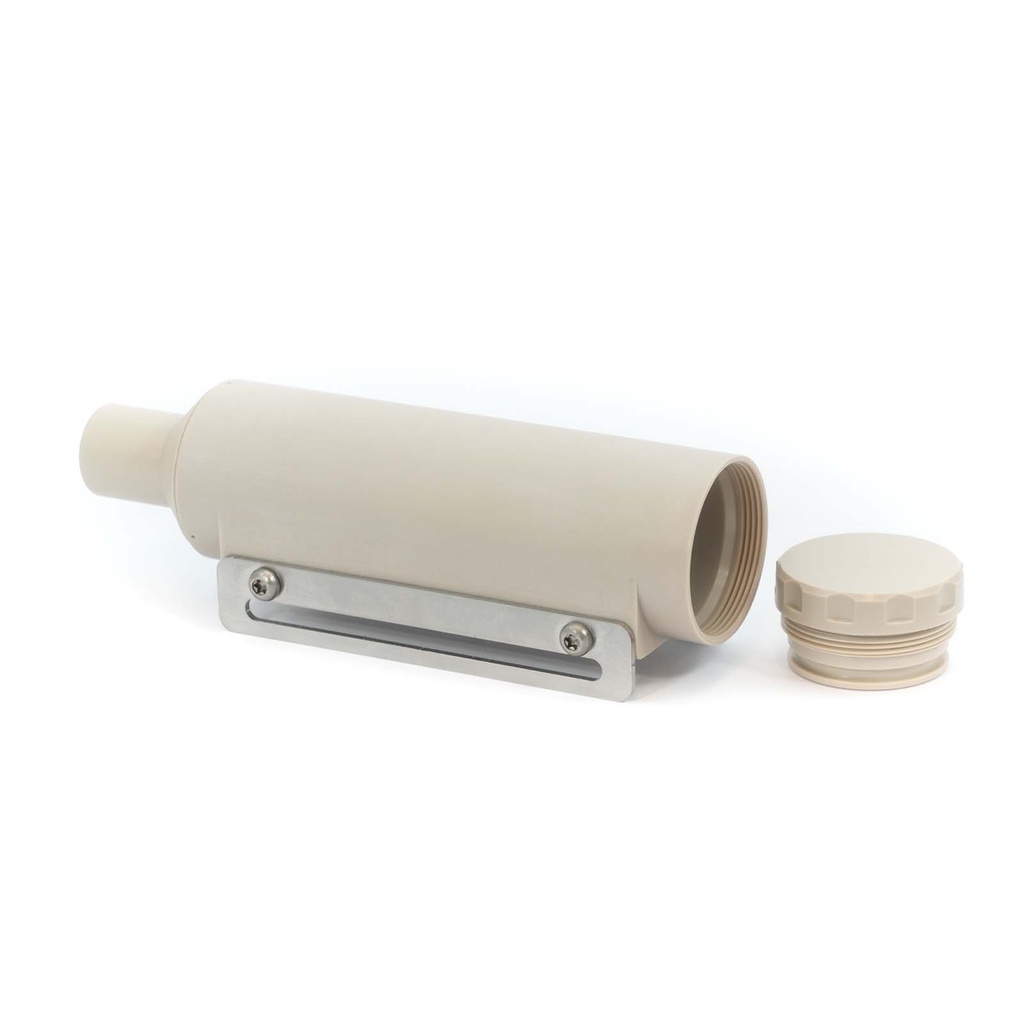

A rotary switch inside the cap allows you to effortlessly select the desired channel for communication with the Water Linked Underwater GPS system, ensuring seamless tracking.

Versatile & Secure Mounting

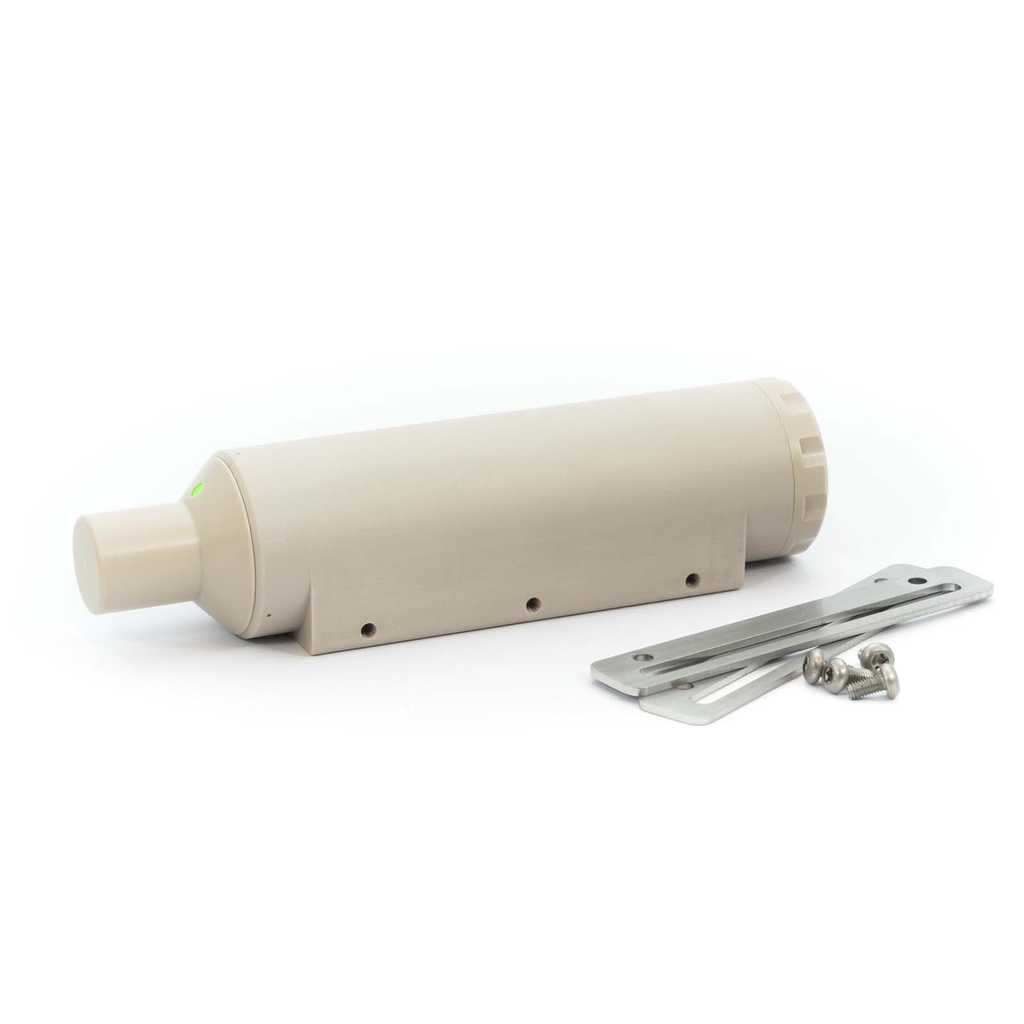

The Locator-U1 comes with a default bracket and three M3 screw mounting holes on each side, allowing for secure and flexible installation.

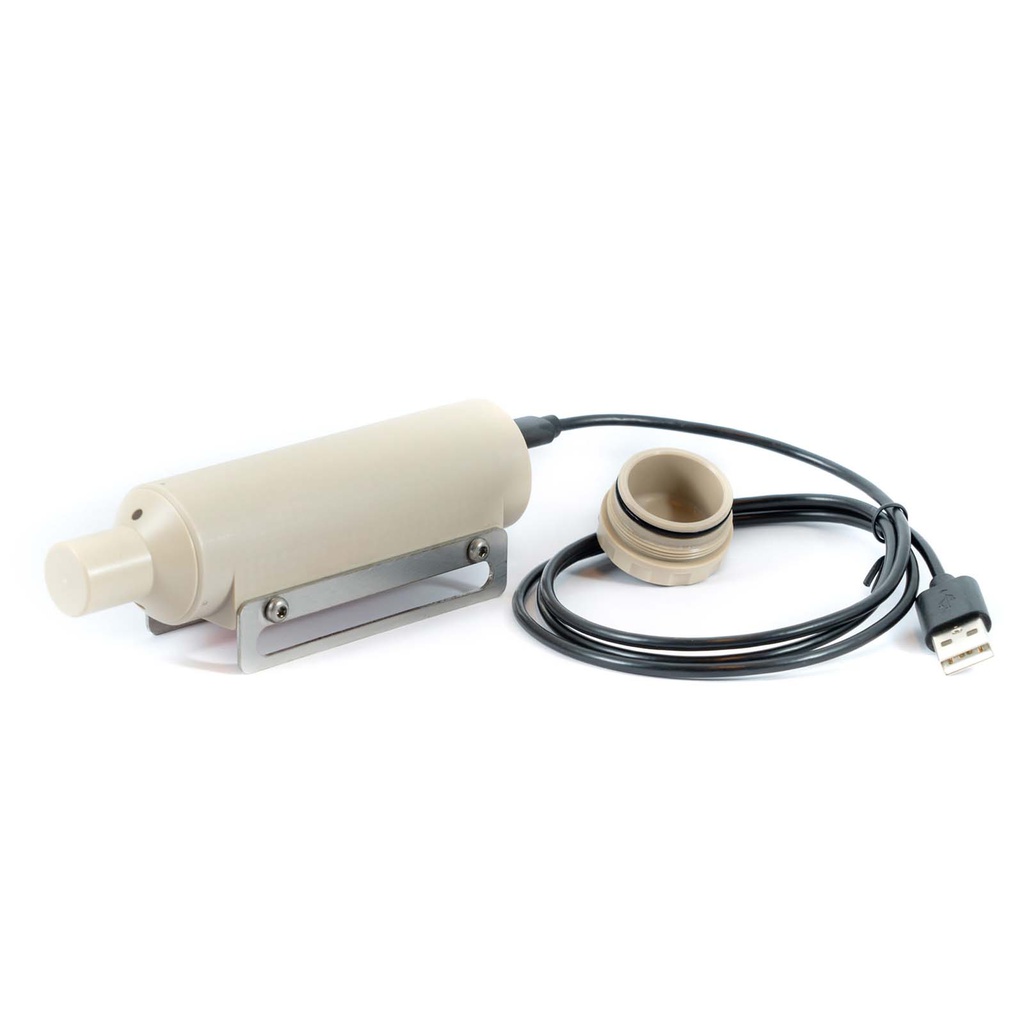

Charging & Deployment


Simply
connect the USB-C cable to a 5V/2A adapter, charge for 7 hours, and you’re set for reliable underwater tracking.

Downloads/Resources



Datasheet
PDF
User manual URL
CAD File ZIP
CE Certificate URL
Certificate of Origin
PDF
