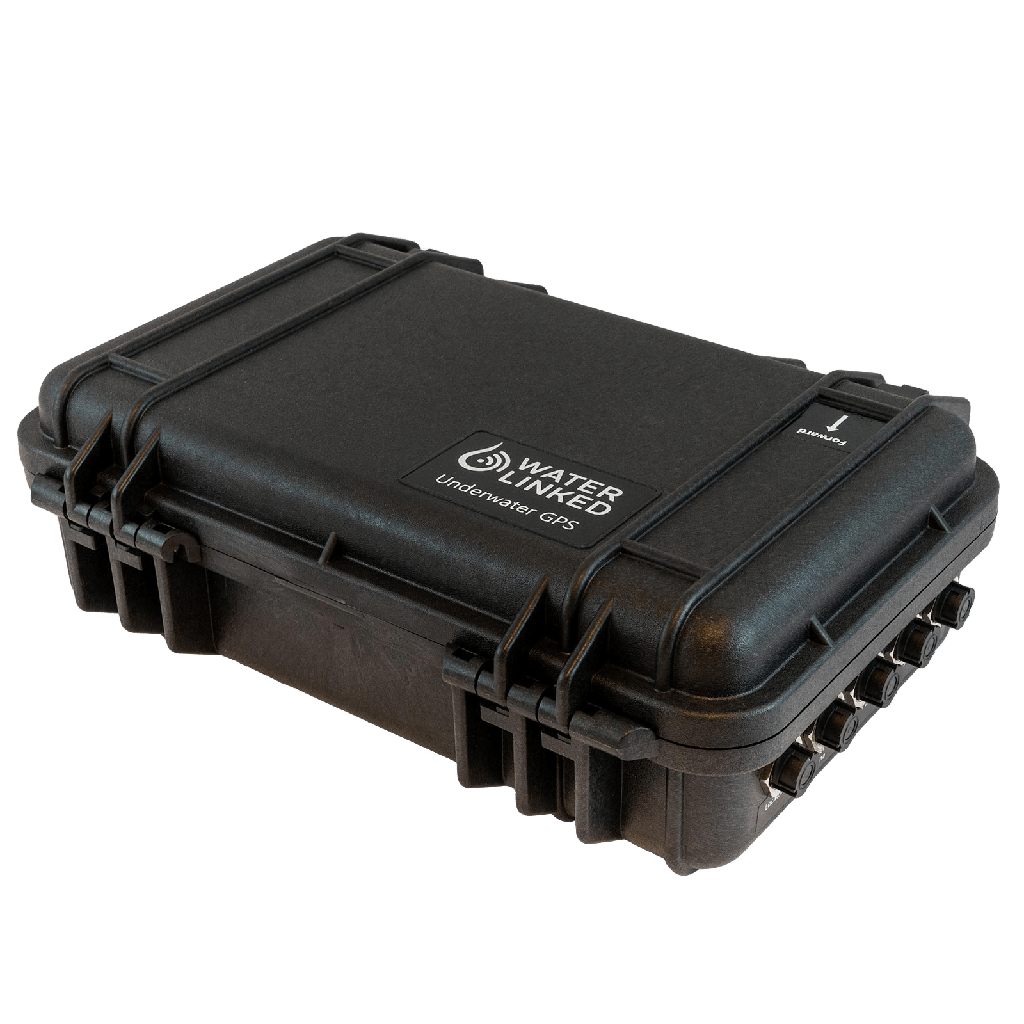

Underwater GPS G2 Topside
$ 45.44
$ 4,550.00
Control center for UGPS
Calculates the exact position of the tracked object
Calculates the exact position of the tracked object
Excellent protection
Water tight, dust proof.
Water tight, dust proof.
Easy to carry
Light pelican case you can transport swiftly
Technical specifications
Mechanical
- IP rating IP67 (when closed)
-
Operating temperature
–10°C to 60°C - Topside external dimensions 29.6 x 21.2 x 9.6 cm
Electrical / Interface
- Input voltage 10 V to 30 V DC
- Power consumption 0.25 A at 12 V
- Power-on current surge 2.30 A at 12 V
-
Communication
WiFi (802.11ac/a/b/g/n) - Ethernet (100 Mbps)
- NMEA 0183
-
Protocols
Water Linked API URL - User interface Web based GUI (local connection)
Acoustic / Performance
- Range 100 or 300 meter radius
- (depending on version selected)
-
Ping rate
2-4 hz - Accuracy Horizontal range : < 0.2%
- Horizontal angle : < 1°
- Vertical (depth) : < 1%
-
Long term drift
Locator A1: None - Locator U1: ~1 meter per 6 hours
- Transducer frequency 31.25 kHz to 250 kHz (200 kHz typical)
-
Operating principle
Time of flight, Triangulation - Integrated IMUs Yost Labs TSS-NANO
- TDK Invensense ICM-20948
-
Integrated GPS
u-blox NEO-M8T
Approvals
-
CE certificate
Yes
More about the UGPS Topside
This product is normally delivered as part of a complete Underwater GPS G2 system. But if you already own a Water Linked locator and baseline, you can purchase this product to get a complete system.
The Pelican Case topside is the best option for most use cases. The housing is watertight, dust-proof and provides excellent protection against the elements. The integrated handle makes it easy to carry.
